INSTALLATION

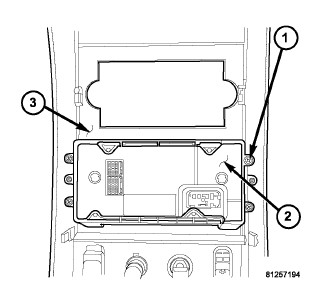

1. Position the A/C-heater control (2) into the instrument panel center bezel (3).
2. Install the screws (1) that secure the A/C-heater control to the instrument panel center bezel. Tighten the screws to 2 Nm (17 in. lbs.).

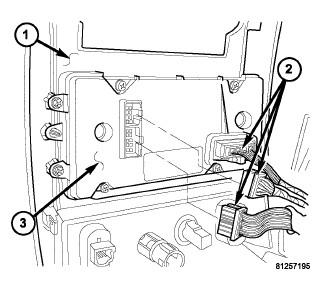

3. Connect the wire harness connector(s) (2) to the A/C-heater control (3) and install the instrument panel center bezel (1) Instrument Panel Bezel - Installation.
4. Reconnect the negative battery cable.
5. Initiate the Actuator Calibration function using a scan tool HVAC System Test.
