Heated Seat Module - Description

DESCRIPTION

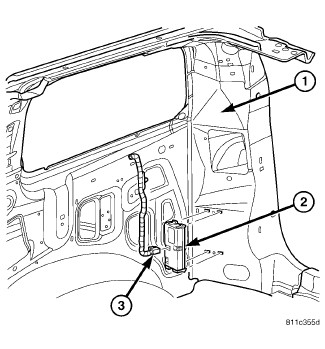

The heated seat module (2) is located behind the right rear D-pillar trim (1). The heated seat module has a single electrical connector (3).

The heated seat module is an microprocessor designed to use CAN bus messages from the cluster Cabin Compartment Node (CCN) to operate the heated seat elements in both front seats.
