Anti-Lock Brake System Module - Removal

REMOVAL






CAUTION: When removing ABM from HCU, be sure to completely separate the two components (approximately 38 mm (1.5 in.) before removing ABM. Otherwise, damage to the pressure sensor or Pump Motor connection may result requiring HCU replacement. Do not to touch the sensor terminals on the HCU side or the contact pads on the ABM side as this may result in contamination and issues in the future.

NOTE: ABM module can be removed without removing the HCU unit.

1. Remove the left front tire and wheel assembly.
2. Disconnect the electrical connector from the ABM module.

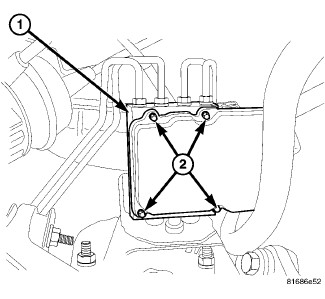

3. Remove the module mounting screws (2).
4. Remove the module from the HCU (1) on ESP vehicles be careful not to damage the pressure sensor or not to touch the sensor terminals on the HCU side or the contact pads on the ABM side when removing the ABM.
