Memory Positioning Switch

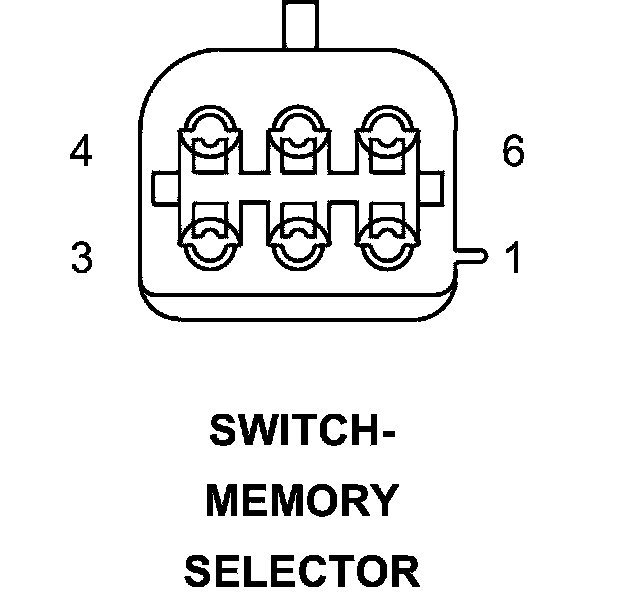

Connector - (LEFT FRONT DOOR) 6 WAY

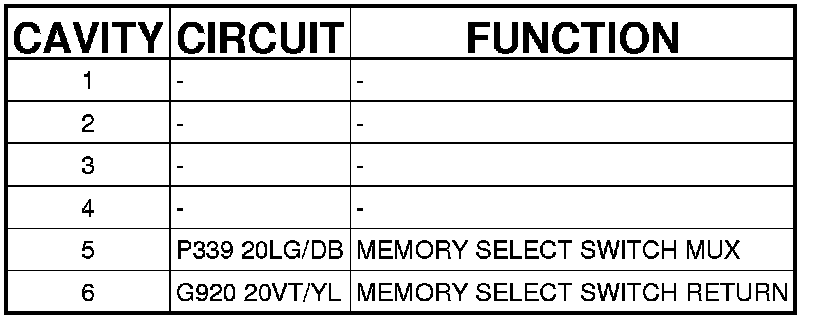

SWITCH-MEMORY SELECTOR - (LEFT FRONT DOOR) 6 WAY
