Transmission Position Sensor/Switch: Diagrams

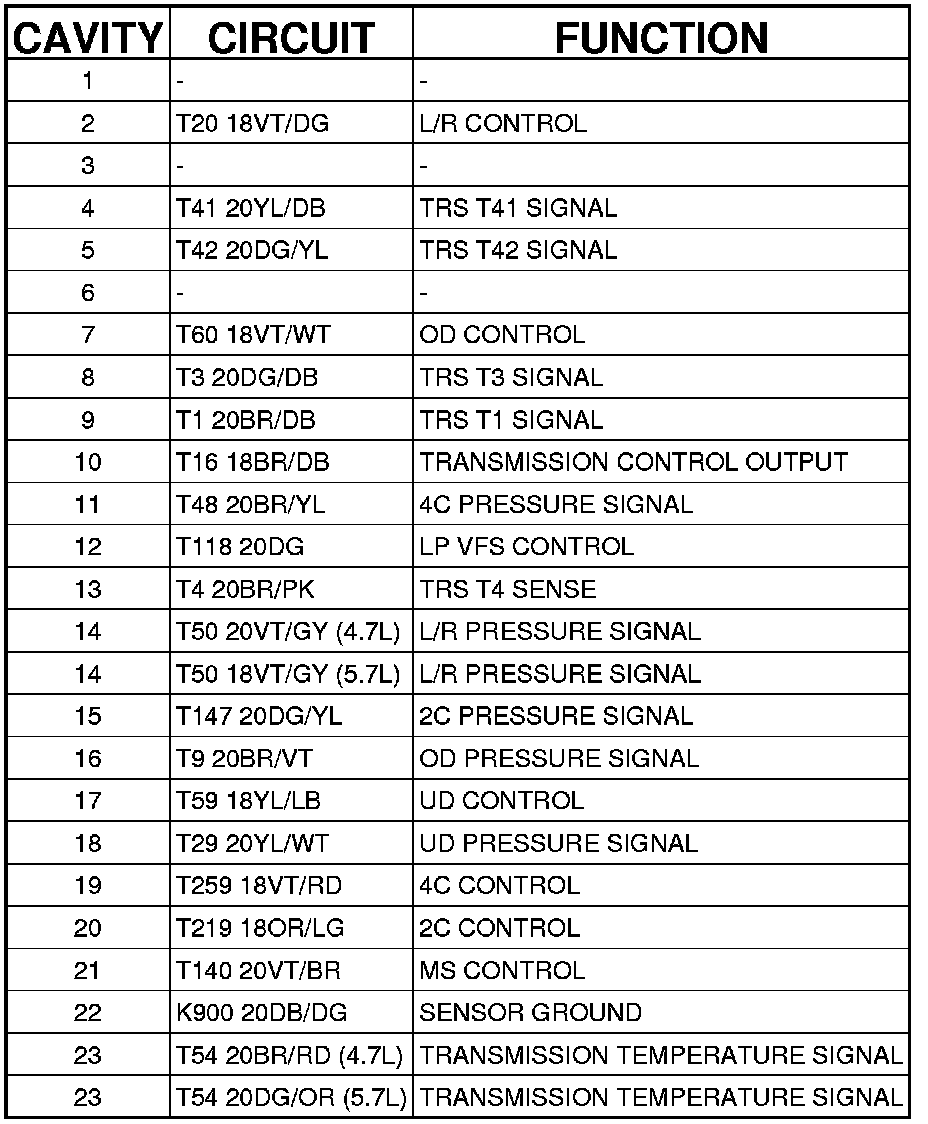

Connector (RFE) - (ENGINE) 23 WAY

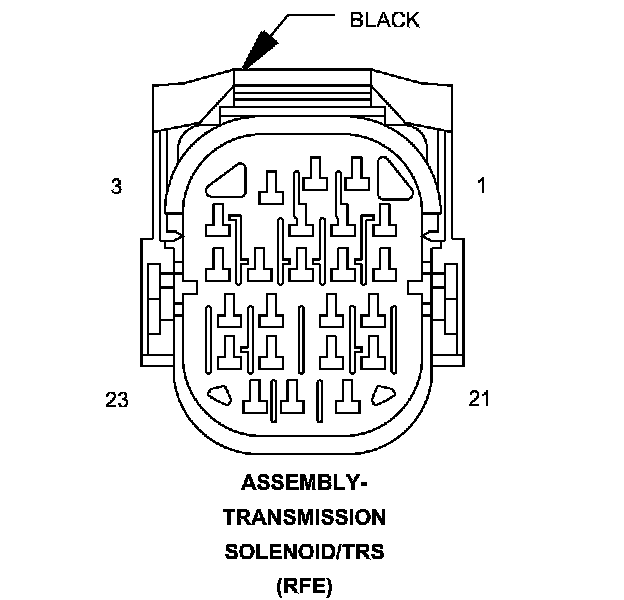

ASSEMBLY-TRANSMISSION SOLENOID/TRS (RFE) - (ENGINE) 23 WAY
