System Specifications

TIMING CHAIN TENSIONER

Timing Chain Tensioner Arm 28 Nm (250 in. lbs.)
Timing Chain Primary Tensioner Bolts 28 Nm (250 in. lbs.)

CRANKSHAFT PULLEY TORQUE

Crankshaft Damper Bolt 175 Nm (130 ft. lbs.)

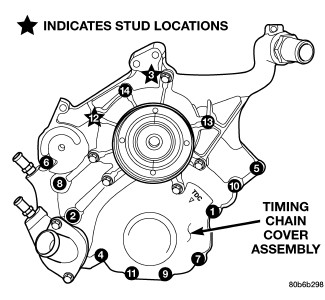

TIMING COVER





Timing Chain Cover Bolts 58 Nm (43 ft. lbs.)
