Satellite Video Module C3 (Body Left) 2 Way

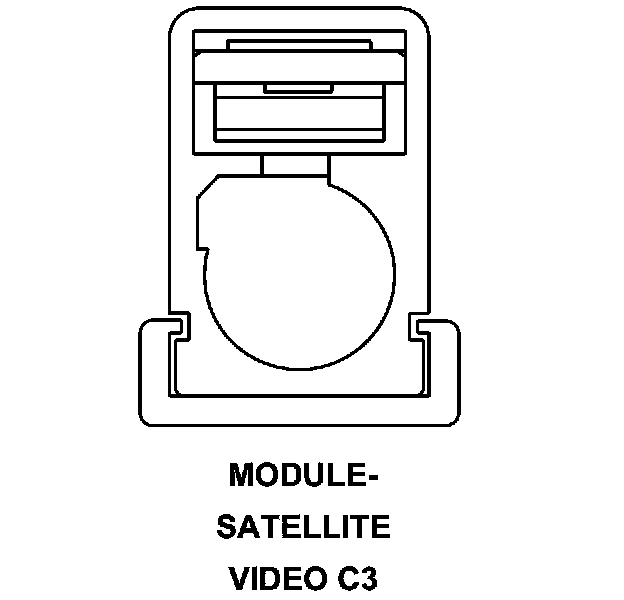

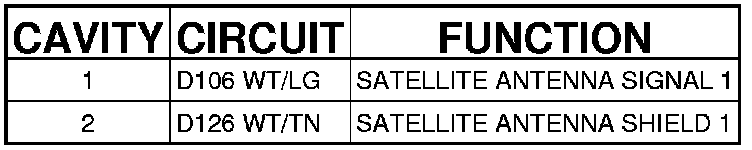

Connector C3 - (BODY LEFT) 2 WAY
MODULE-SATELLITE VIDEO - (BODY LEFT) 2 WAY
