B2314-Wiper On/Off Control Circuit High: Wiring Diagram

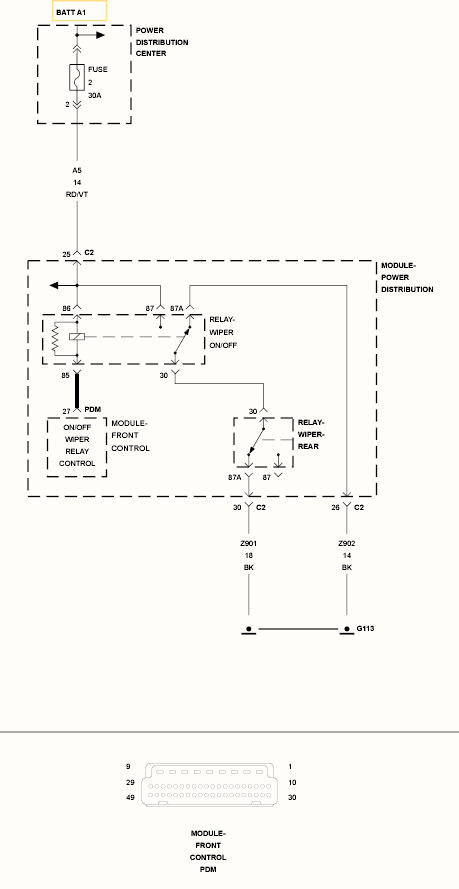

Fig 1: Wiper On/Off Control Circuit
GC0106223Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
