Diagnostic Test

DTC IS ACTIVE
1. Ignition on, engine not running.
2. With the scan tool, erase DTCs.
3. Move the Shift control to each position, while monitoring the Data Display on the scan tool.
  Does the DTC reset?

  Yes
  - Go to step 2
  No
  - Go to step 12

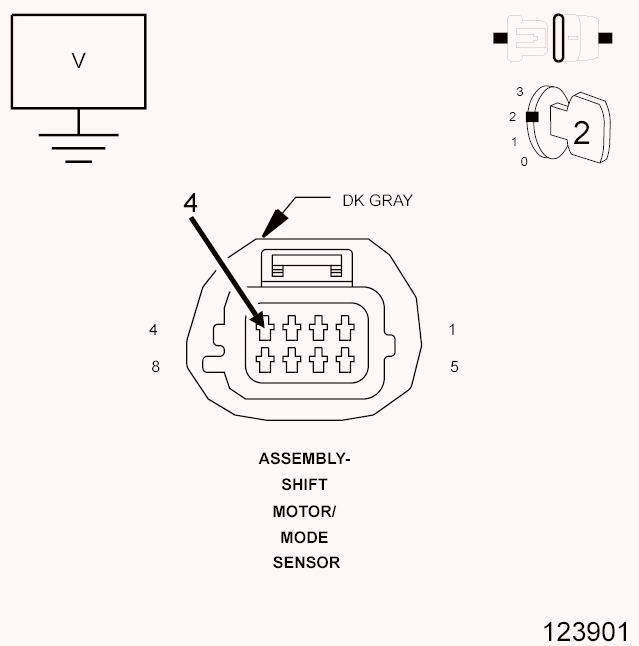

(T101) SHIFT MOTOR (+) CIRCUIT SHORTED TO VOLTAGE

Fig 1: Checking Shift Motor Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off to the lock position.
2. Disconnect the Shift Motor/Mode Sensor Assembly harness connector.
3. Separate the FCM from the IPM.
4. Ignition on, engine not running.
5. Measure the voltage of the (T101) Shift Motor (+) circuit at the Shift Motor/Mode Sensor Assembly harness connector.
  Is there any voltage present?

  Yes
  - Repair the short to voltage in the (T101) Shift Motor (+) circuit.
  - Perform the TRANSFER CASE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
  No
  - Go to step 3

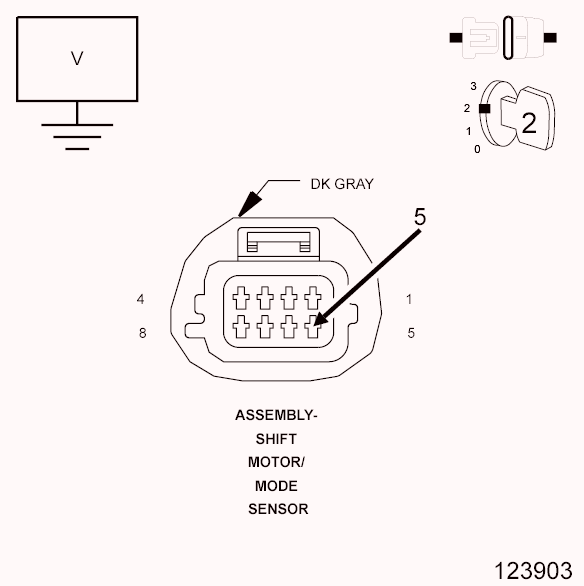

(T102) SHIFT MOTOR (-) CIRCUIT SHORTED TO VOLTAGE

Fig 2: Checking Shift Motor Circuit
Courtesy of CHRYSLER LLC
1. Measure the voltage of the (T102) Shift Motor (-) circuit at the Shift Motor/Mode Sensor Assembly harness connector.
  Is there any voltage present?

  Yes
  - Repair the short to voltage in the (T102) Shift Motor (-) circuit.
  - Perform the TRANSFER CASE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
  No
  - Go to step 4

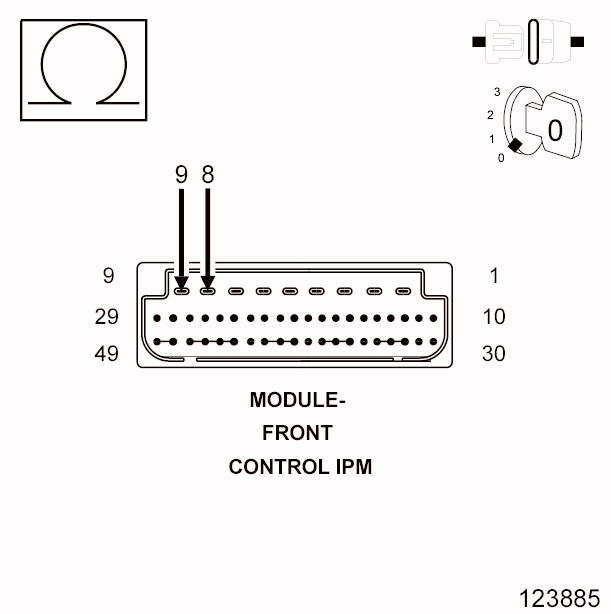

SHIFT MOTOR CIRCUIT RESISTANCE AT FCM CONNECTOR

Fig 3: Checking Shift Motor Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off to the lock position.
2. Reconnect the Shift Motor/Mode Sensor Assembly harness connector.
3. Measure the resistance between the Shift Motor (+) circuit and the Shift Motor (-) circuit at the FCM harness connector of the IPM.
  Is the resistance between 40 and 100 Ohms?

  Yes
  - Go to step 11
  No
  - Go to step 5
SHIFT MOTOR CIRCUIT RESISTANCE AT IPM CONNECTOR

Fig 4: Checking Shift Motor Circuit
Courtesy of CHRYSLER LLC

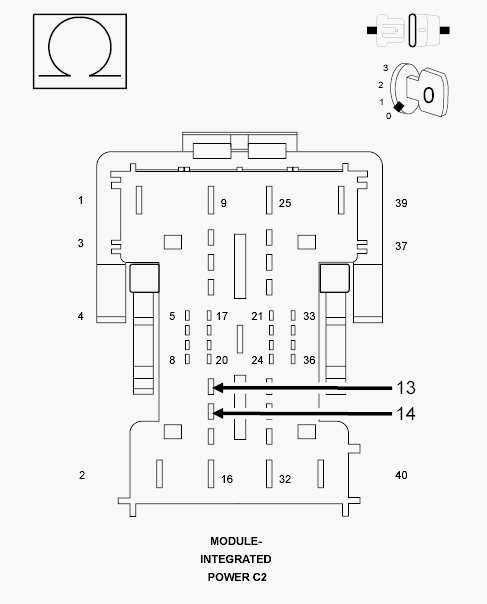

1. Disconnect the IPM C2 harness connector.
2. Measure the resistance between the Shift Motor (+) circuit and the Shift Motor (-) circuit at the IPM C2 harness connector.
  Is the resistance between 40 and 100 Ohms?

  Yes
  - Go to step 10
  No
  - Go to step 6

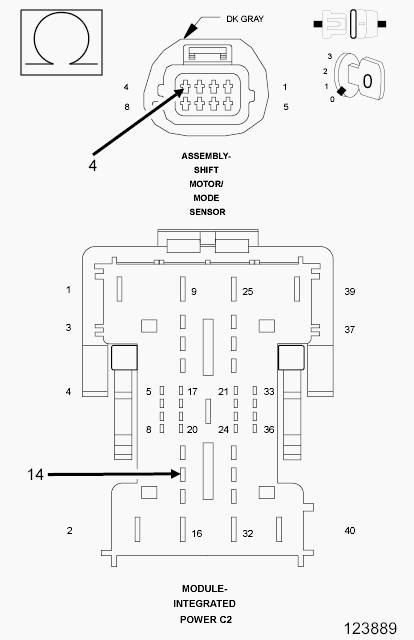

(T101) SHIFT MOTOR (+) CIRCUIT OPEN

Fig 5: Checking Shift Motor Circuit
Courtesy of CHRYSLER LLC
1. Disconnect the Shift Motor/Mode Sensor Assembly harness connector.
2. Measure the resistance of the (T101) Shift Motor (+) circuit between the Shift Motor/Mode Sensor Assembly harness connector and the IPM C2 harness connector.
  Is the resistance above 5.0 Ohms?

  Yes
  - Repair the (T101) Shift Motor (+) circuit for an open.
  - Perform the TRANSFER CASE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
  No
  - Go to step 7

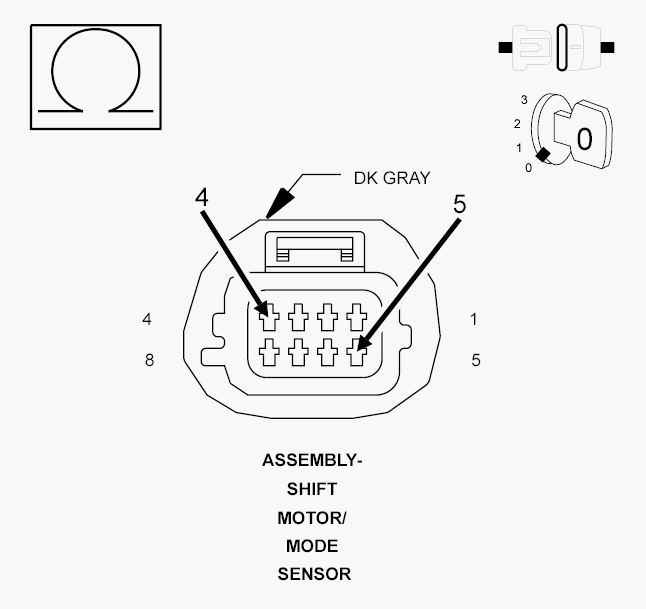

(T102) SHIFT MOTOR (-) CIRCUIT OPEN

Fig 6: Checking Shift Motor Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (T102) Shift Motor (-) circuit from the Shift Motor/Mode Sensor Assembly harness connector to the IPM C2 harness connector.
  Is the resistance above 5.0 Ohms?

  Yes
  - Repair the open in the (T102) Shift Motor (-) circuit.
  - Perform the TRANSFER CASE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
  No
  - Go to step 8

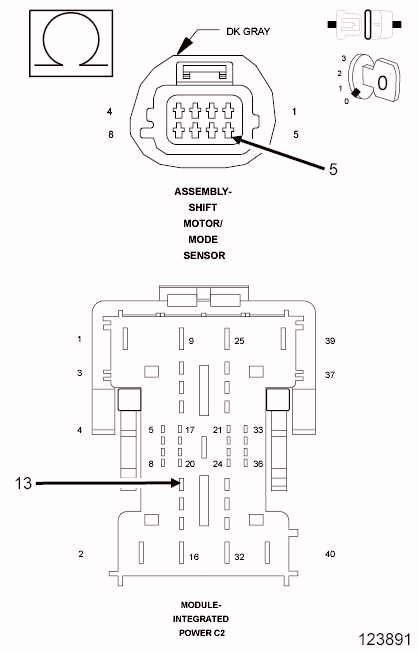

(T101) SHIFT MOTOR (+) POS CIRCUIT SHORTED TO THE (T102) SHIFT MOTOR (-) CIRCUIT

Fig 7: Checking Shift Motor Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between (T101) Shift Motor (+) circuit and the (T102) Shift Motor (-) circuit at the Shift Motor/Mode Sensor Assembly harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Repair the short between the (T101) Shift Motor (+) circuit and the (T102) Shift Motor (-) circuit.
  - Perform the TRANSFER CASE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
  No
  - Go to step 9
SHIFT MOTOR/MODE SENSOR ASSEMBLY
1. Using the wiring diagram/schematic as a guide, inspect all wiring harness and connectors that pertain to this circuit.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform the TRANSFER CASE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
  No
  - Replace the Shift Motor/Mode Sensor Assembly in accordance with the Service Information.
  - Perform the TRANSFER CASE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
INTEGRATED POWER MODULE (IPM)
1. Using the wiring diagram/schematic as a guide, inspect all wiring harness and connectors that pertain to this circuit.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform the TRANSFER CASE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
  No
  - Replace the Integrated Power Module (IPM) in accordance with the Service Information.
  - Perform the TRANSFER CASE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
FRONT CONTROL MODULE (FCM)
1. Using the wiring diagram/schematic as a guide, inspect all wiring harness and connectors that pertain to this circuit.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform the TRANSFER CASE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
  No
  - Replace the Front Control Module (FCM) in accordance with the Service Information.
  - Perform the TRANSFER CASE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
INTERMITTENT WIRING AND CONNECTORS
1. The conditions necessary to set this DTC are not present at this time.
2. Using the wiring diagram/schematic as a guide, inspect the wiring harness and connectors.
3. While monitoring the scan tool data relative to this circuit, wiggle test the wiring harness and connectors.
4. Look for the data to change or for the DTC to reset during the wiggle test.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform the TRANSFER CASE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
  No
  - Test complete.
