P0480-Cooling Fan 1 Control Circuit: Wiring Diagram

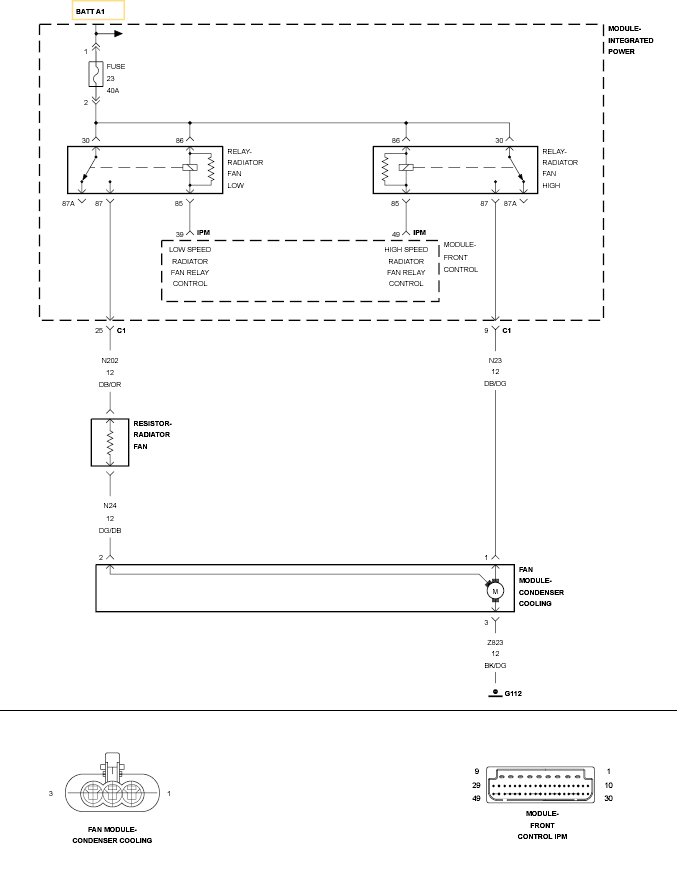

Fig 1: Cooling Fan 1 Control Circuit
GC0106279Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
