Diagnostic Test

CHECK FOR DTC B1D67-ADJUSTABLE PEDAL CONTROL CIRCUIT PERFORMANCE
NOTE: This DTC must be active for the results of this test to be valid.
1. Turn the ignition on.
2. With the scan tool, record and erase DTCs.
3. Cycle the ignition switch from off to on.
4. Cycle and hold the Adjustable Pedals Switch forward, rearward, and forward at two second intervals.
5. With the scan tool, read DTCs.
  Does the scan tool display: B1D67-ADJUSTABLE PEDAL CONTROL CIRCUIT PERFORMANCE?

  Yes
  - Go to 2
  No
  - Refer to the INTERMITTENT CONDITION diagnostic procedure.
  - Perform APS VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure
CHECK CONNECTOR/TERMINAL FOR DAMAGE
NOTE: Check all terminals for broken, bent, pushed out, or corroded terminals.
1. Turn the ignition off.
2. Inspect the Seat Memory Module harness connector, Adjustable Pedals Motor, and Adjustable Pedals Motor harness connector.
  Is the Adjustable Pedals Motor or any of the connectors/terminals damaged?

  Yes
  - Repair as necessary.
  - Perform APS VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure
  No
  - Go to 3
CHECK ADJUSTABLE PEDALS ASSEMBLY FOR MECHANICAL DAMAGE
1. Inspect the Adjustable Pedals Assembly for any physical damage.
  NOTE: Check for any conditions that would cause the motor to stall or be stuck.

  Is the Adjustable Pedals Assembly damaged or broken?

  Yes
  - Replace the Adjustable Pedals Assembly in accordance with the Service Information.
  - Perform APS VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure
  No
  - Go to 4
CHECK (P205) ADJUSTABLE PEDALS MOTOR FORWARD CIRCUIT FOR AN OPEN

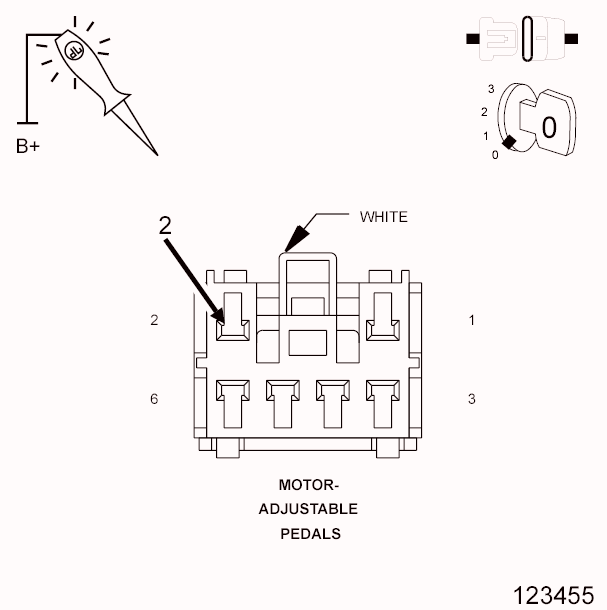

Fig 1: Checking Adjustable Pedals Motor Forward Circuit For Open
Courtesy of CHRYSLER LLC
1. Disconnect the Seat Memory Module C5 harness connector.
2. Disconnect the Adjustable Pedals Motor harness connector
3. Connect a jumper wire between the (P205) Adjustable Pedals Motor Forward circuit and ground.
4. Using a 12-volt test light connected to 12-volts, probe the (P205) Adjustable Pedals Motor Forward circuit at the Adjustable Pedals Motor harness connector.
  Does the test light illuminate brightly?

  Yes
  - Go to 5
  No
  - Repair the (P205) Adjustable Pedals Motor Forward circuit for an open.
  - Perform APS VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure
CHECK (P206) ADJUSTABLE PEDALS MOTOR REARWARD CIRCUIT FOR AN OPEN

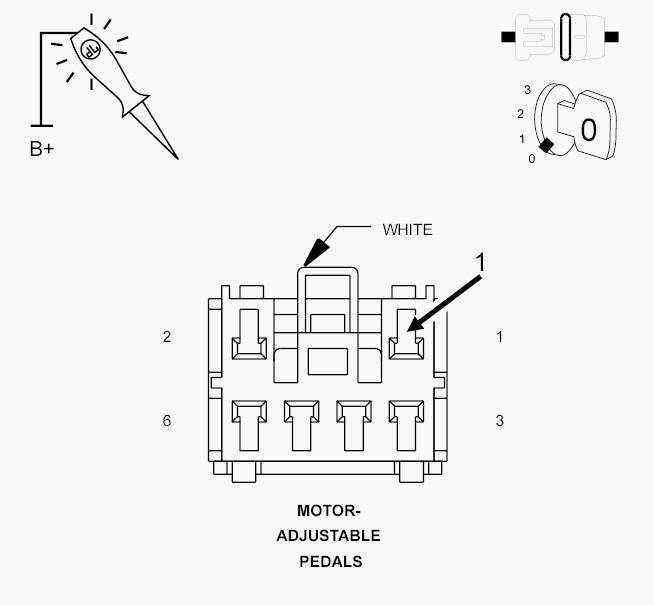

Fig 2: Checking Adjustable Pedals Motor Rearward Circuit For Open
Courtesy of CHRYSLER LLC
1. Connect a jumper wire between the (P206) Adjustable Pedals Motor Rearward circuit and ground.
2. Using a 12-volt test light connected to 12-volts, probe the (P206) Adjustable Pedals Motor Rearward circuit at the Adjustable Pedals Motor harness connector.
  Does the test light illuminate brightly?

  Yes
  - Go to 6
  No
  - Repair the (P206) Adjustable Pedals Motor Rearward circuit for an open.
  - Perform APS VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure
CHECK (G912) ADJUSTABLE PEDALS SENSOR RETURN CIRCUIT FOR AN OPEN

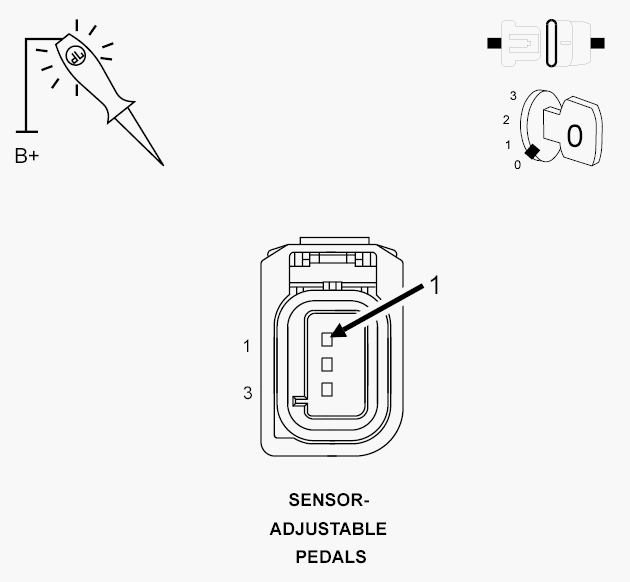

Fig 3: Checking Adjustable Pedals Sensor Return Circuit For Open
Courtesy of CHRYSLER LLC
1. Disconnect Adjustable Pedals Sensor harness connector.
2. Connect a jumper wire between the (G912) Adjustable Pedals Sensor Return circuit and ground.
3. Using a 12-volt test light connected to 12-volts, probe the (G912) Adjustable Pedals Sensor Return circuit at the Adjustable Pedals Sensor harness connector.
  Does the test light illuminate brightly?

  Yes
  - Go to 7
  No
  - Repair the (G912) Adjustable Pedals Sensor Return circuit for an open.
  - Perform APS VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure
CHECK ADJUSTABLE PEDALS MOTOR

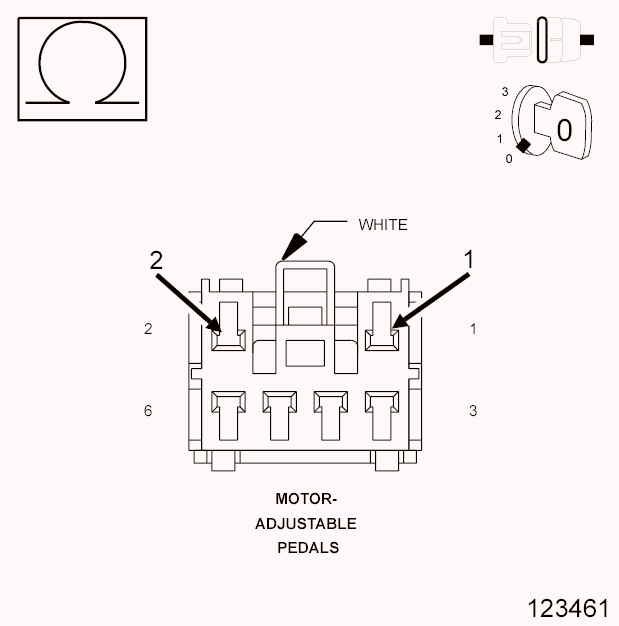

Fig 4: Checking Adjustable Pedal Motor
Courtesy of CHRYSLER LLC
1. Reconnect the Adjustable Pedals Sensor harness connector.
2. Measure the resistance between the (P205) Adjustable Pedals Motor Forward and (P206) Adjustable Pedals Motor Rearward terminals at the Adjustable Pedals Motor.
  Is the resistance below 100.0 ohms?

  Yes
  - Replace and reprogram the Seat Memory Module in accordance with the Service Information.
  - Perform APS VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure
  No
  - Replace the Adjustable Pedals Motor in accordance with the Service Information.
  - Perform APS VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure
