Memory Seat Module (MSMD) - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B1D75-Seat Rear Vertical Position Sensor Circuit Low
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

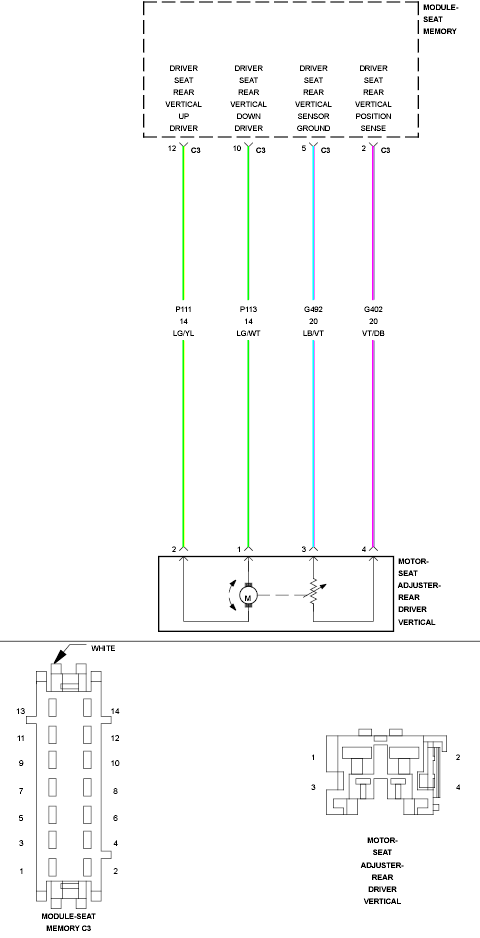

Fig 1: Seat Rear Vertical Position Sensor Circuit Schematic
Courtesy of CHRYSLER LLC
