Diagnostic Test

CHECK FOR ACTIVE FAULT WITH SEAT STATIONARY
1. Turn the ignition on.
2. Using a scan tool, record and erase Diagnostic Trouble Codes (DTCs).
3. Cycle the ignition from on to off three times.
4. Turn the ignition on and wait 30 seconds.
5. Using a scan tool, read DTCs.
  Is DTC B1D75-SEAT REAR VERTICAL POSITION SENSOR CIRCUIT LOW active?

  Yes
  - Go to 3
  No
  - Go to 2
CHECK FOR ACTIVE FAULT WHILE ADJUSTING THE SEAT
1. Move the seat switch in the rear vertical adjust position three times.
2. Using a scan tool, read DTCs.
  Is DTC B1D75-SEAT REAR VERTICAL POSITION SENSOR CIRCUIT LOW active?

  Yes
  - Go to 3
  No
  - The conditions that caused this code to set are not present at this time. Verify seat harness is routed correctly. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors. Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Memory Seat (MSMD) - Standard Procedure .
CHECK THE (G402) DRIVER SEAT REAR VERTICAL POSITION SENSE CIRCUIT FOR A SHORT TO GROUND

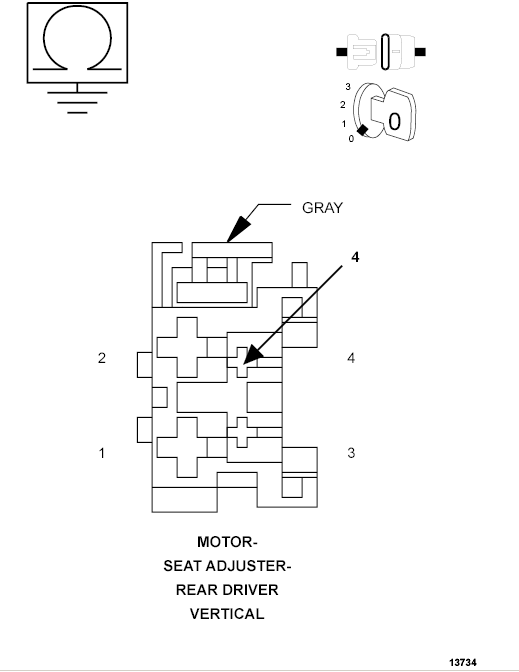

Fig 1: Measuring Resistance Of Driver Seat Rear Vertical Position Sense Wire At Rear Driver Vertical Seat Adjuster Motor Connector To Ground
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Memory Seat Module C3 connector.
3. Disconnect the Rear Driver Vertical Seat Adjuster Motor connector.
  NOTE: Check connectors. Clean and repair as necessary.
4. Measure the resistance of the (G402) Driver Seat Rear Vertical Position Sense circuit between ground and the Rear Driver Vertical Seat Adjuster Motor connector.
  Is the resistance below 10K Ohms?

  Yes
  - Repair the (G402) Driver Seat Rear Vertical Position Sense circuit for a short to ground.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Memory Seat (MSMD) - Standard Procedure .
  No
  - Go to 4
CHECK THE (G402) DRIVER SEAT REAR VERTICAL POSITION SENSE CIRCUIT FOR A SHORT TO (G492) DRIVER SEAT REAR VERTICAL SENSOR GROUND CIRCUIT, (P111) DRIVER SEAT REAR VERTICAL UP DRIVER CIRCUIT, AND (P113) DRIVER SEAT REAR VERTICAL DOWN DRIVER CIRCUIT

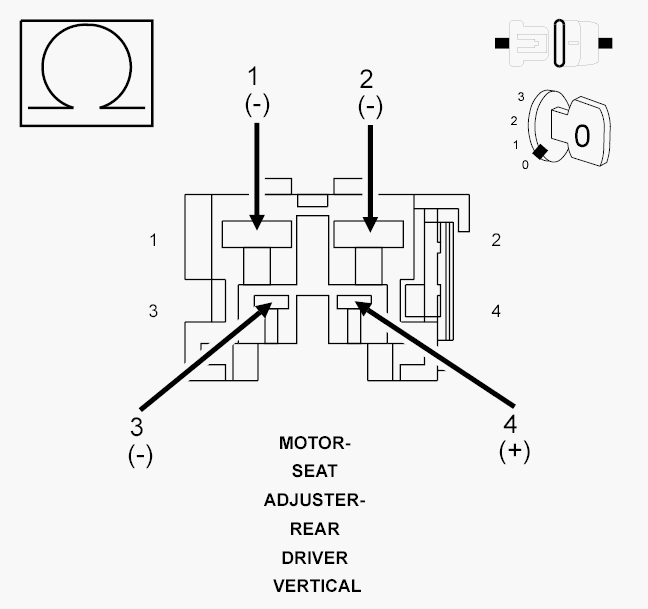

Fig 2: Checking Driver Seat Rear Vertical Position Sense Circuit For Short To Driver Seat Rear Vertical Circuits
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (G402) Driver Seat Rear Vertical Position Sense circuit and the (G492) Driver Seat Rear Vertical Sensor Ground circuit at the Rear Driver Vertical Seat Adjuster Motor connector.
2. Measure the resistance between the (G402) Driver Seat Rear Vertical Position Sense circuit and the (P111) Driver Seat Rear Vertical Up Driver circuit at the Rear Driver Vertical Seat Adjuster Motor connector.
3. Measure the resistance between the (G402) Driver Seat Rear Vertical Position Sense circuit and the (P113) Driver Seat Rear Vertical Down Driver circuit at the Rear Driver Vertical Seat Adjuster Motor connector.
  Is the resistance below 10K Ohms for any measurement?

  Yes
  - Repair all circuits with a resistance below 10K Ohms for a short to the (G402) Driver Seat Rear Vertical Position Sense circuit.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Memory Seat (MSMD) - Standard Procedure .
  No
  - Go to 5
CHECK THE (G402) DRIVER SEAT REAR VERTICAL POSITION SENSE CIRCUIT AND THE (G492) DRIVER SEAT REAR VERTICAL SENSOR GROUND CIRCUIT FUNCTION

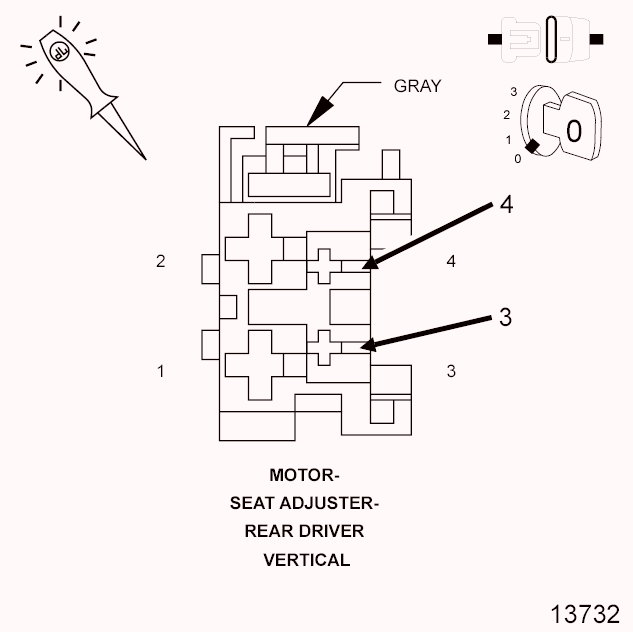

Fig 3: Checking For Voltage In Driver Seat Rear Vertical Position Sense Circuit Using 12V Test Light
Courtesy of CHRYSLER LLC
1. Reconnect the Memory Seat Module C3 connector.
2. Turn the ignition on.
3. Connect a 12-volt test light between the (G402) Driver Seat Rear Vertical Position Sense circuit and the (G492) Driver Seat Rear Vertical Sensor Ground circuit at the Rear Driver Vertical Seat Adjuster Motor connector.
4. Move the seat switch in the rear vertical adjust position.
  Does the test light illuminate for approximately two seconds then turn off with the seat switch engaged?

  Yes
  - Replace the Rear Driver Vertical Seat Adjuster Motor assembly in accordance with the Service Information.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Memory Seat (MSMD) - Standard Procedure .
  No
  - Replace the Memory Seat Module (MSM) in accordance with the Service Information.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Memory Seat (MSMD) - Standard Procedure .
