Memory Seat Module (MSMD) - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B1D76-Seat Rear Vertical Position Sensor Circuit High
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

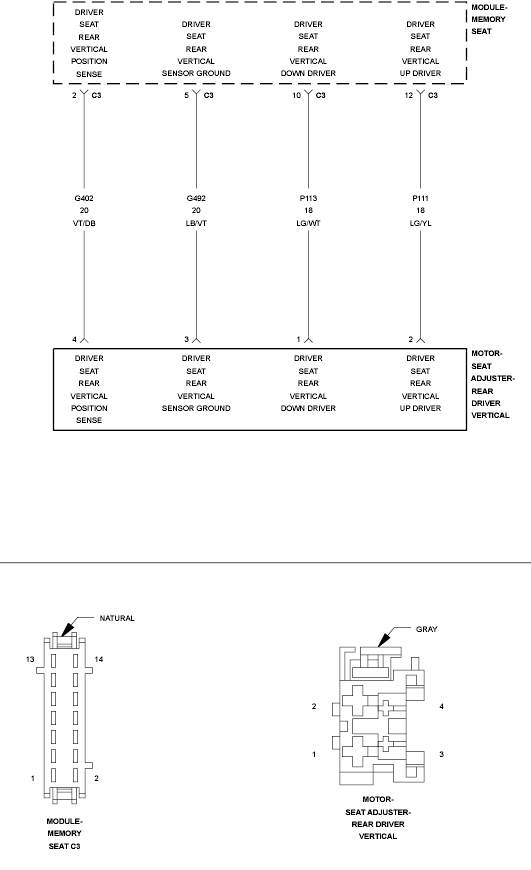

Fig 1: Seat Rear Vertical Motor Control Circuit - Circuit Schematic
