B165C-Park Lamp Control Circuit Low: Wiring Diagram

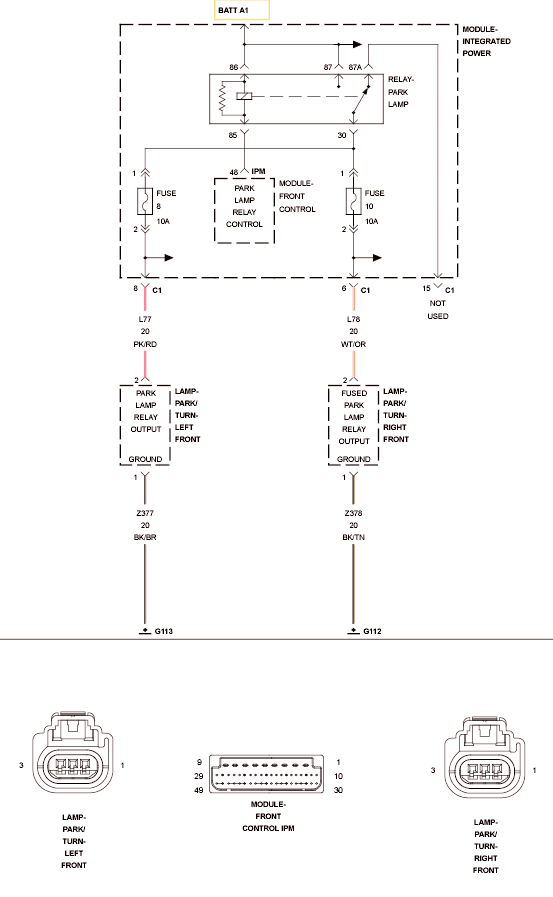

Fig 1: Park Lamp Control Circuit
GC0106178Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
