Diagnostic Test

WARNING: This page is about a different variant/trim than selected.

CHECK IF RELATED DTCS ARE PRESENT
1. With the scan tool, read DTCs.
  Are there any Speed Sensor DTCs present?

  Yes
  - Refer to DTC Based Diagnostics and perform the appropriate diagnostic procedure.
  No
  - Go to step 2
CHECK IF THE DTC IS ACTIVE
1. With the scan tool, read DTCs.
  Is the status Active or is the Starts Since Set counter 2 or less for this DTC?

  Yes
  - Go to step 3
  No
  - Go to step 5
CHECK THE PCM AND WIRING WITH THE TRANSMISSION SIMULATOR
1. Turn the ignition off to the lock position.
2. Remove the Starter Relay.
  CAUTION: Removal of the Starter Relay is to prevent a Transmission NO RESPONSE condition and to disable the starter.
3. Install the Transmission Simulator, Miller tool #8333A and the Electronic Transmission Adapter kit.
  NOTE: Check connectors - Clean/repair as necessary.
4. Ignition on, engine not running.
5. With the Transmission Simulator, turn the Input/Output switch to OFF.
6. With the scan tool, monitor the TRANS TEMP VOLTS while turning the Thermistor Voltage switch to all three positions on the Transmission Simulator.
7. Compare the scan tool readings with the numbers listed on the Transmission Simulator.
  Do the readings on the Transmission Simulator match the scan tool readings ± 0.2 volts?

  Yes
  - Replace Transmission Range Sensor (TRS) in accordance with the Service Information.
  - Perform 42RLE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure
  No
  - Go to step 4
CHECK THE (T54) TRANSMISSION TEMPERATURE SENSOR SIGNAL CIRCUIT FOR A SHORT TO GROUND

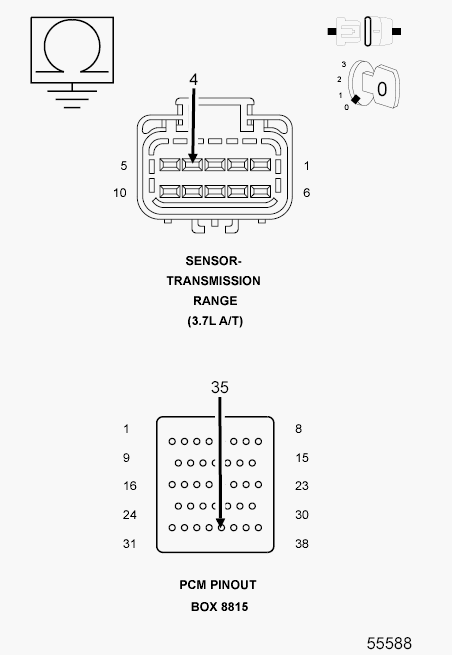

Fig 1: Checking Transmission Temperature Sensor Signal Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off to the lock position.
2. Disconnect the PCM C4 harness connector.
3. Disconnect the TRS harness connector.
  NOTE: Check connectors - Clean/repair as necessary.

  CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install the PCM Pinout Box 8815 to perform diagnosis.
4. Measure the resistance between ground and the (T54) Transmission Temperature Sensor Signal circuit.
  Is the resistance below 5.0 ohms?

  Yes
  - Repair the (T54) Transmission Temperature Sensor Signal circuit for a short to ground.
  - Perform 42RLE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure
  No
  - Using the schematics as a guide, check the Powertrain Control Module (PCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. Check for Service Bulletins for any possible causes that may apply. If no problems are found, replace and program the PCM in accordance with the Service Information. With the scan tool, perform Quick Learn.
  - Perform 42RLE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure
CHECK THE WIRING AND CONNECTORS
1. The conditions necessary to set this DTC are not present at this time.
2. Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.
3. Wiggle the wires while checking for shorted and open circuits.
4. With the scan tool, check the Event Data to help identify the conditions in which the DTC was set.
5. Check for any Service Information Tune-ups or Service Bulletins for any possible causes that may apply.
  Were there any problems found?

  Yes
  - Repair as necessary.
  - Perform 42RLE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure
  No
  - Test Complete.
