System
>>
DTCS P000B To P0124
>>
P0052-O2 Sensor 2/1 Heater Circuit High
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

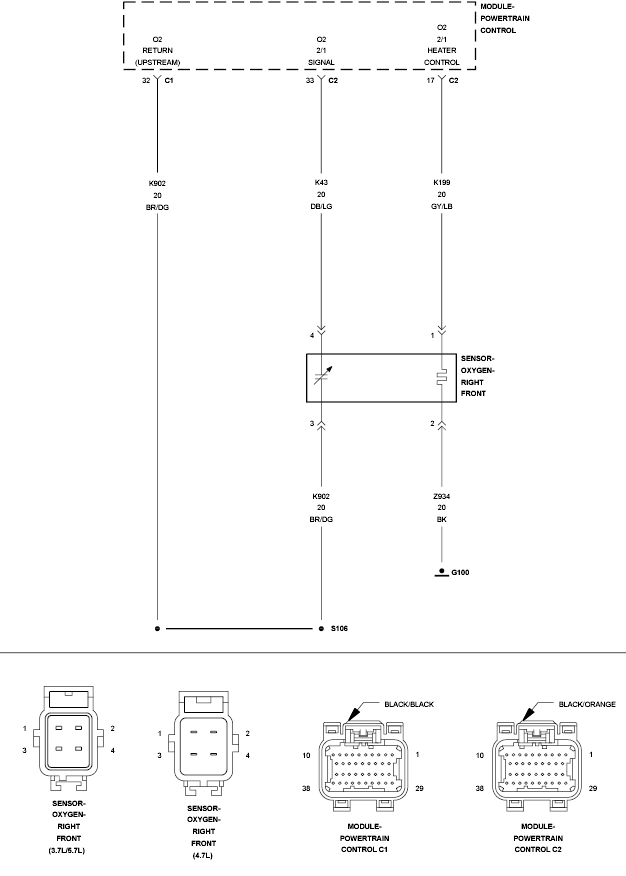

Fig 1: O2 Sensor Heater Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
