Satellite Video Module - Removal

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Move the front passenger seat to the most forward position.

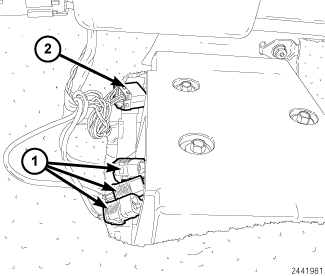

3. Disconnect the three antenna connectors (1) and the electrical connector (2).

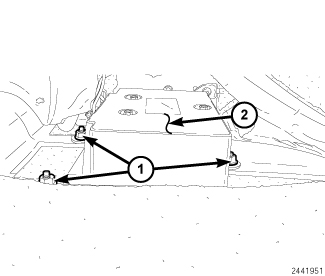

4. Remove the three retainers (1) securing the video module housing (2) to the floor, remove video housing and module from vehicle.

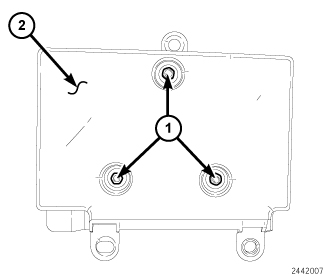

5. Remove the video module retainers (1) to the video module housing (2).
