Compressor Control Valve Assembly

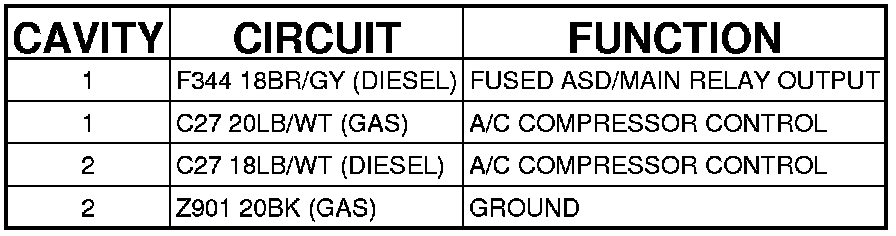

Connector (VDAC) - (ENGINE) 2 WAY

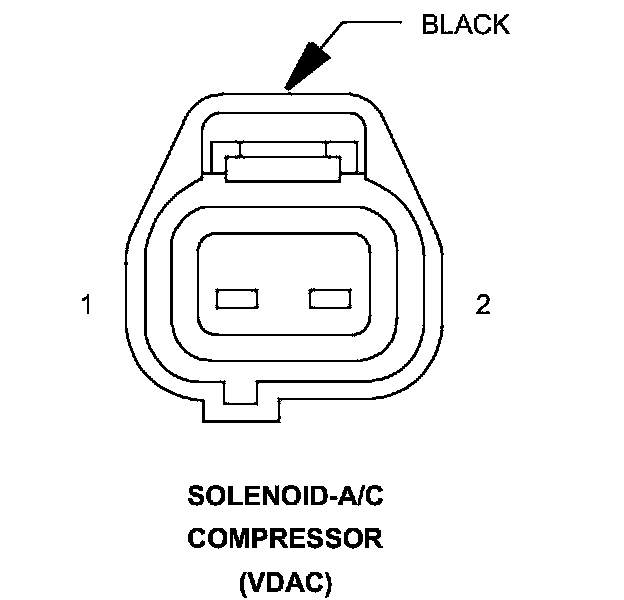

SOLENOID-A/C COMPRESSOR (VDAC) - (ENGINE) 2 WAY
