Inverter Module (Except Export) (Body) 9 Way

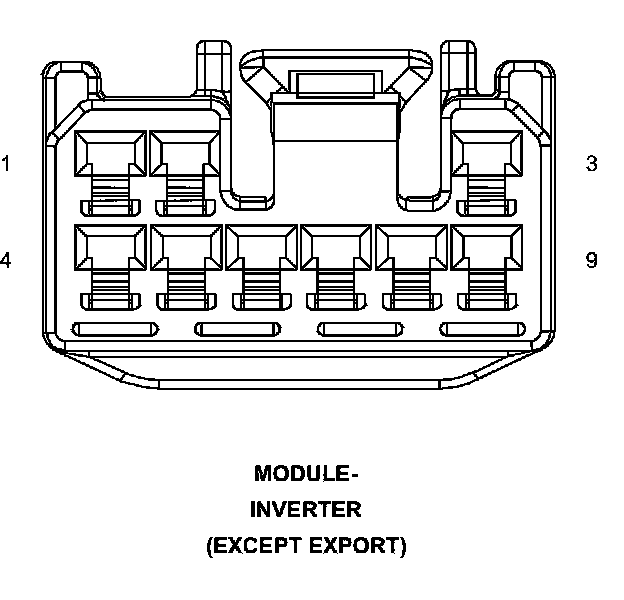

Connector (EXCEPT EXPORT) - (BODY) 9 WAY

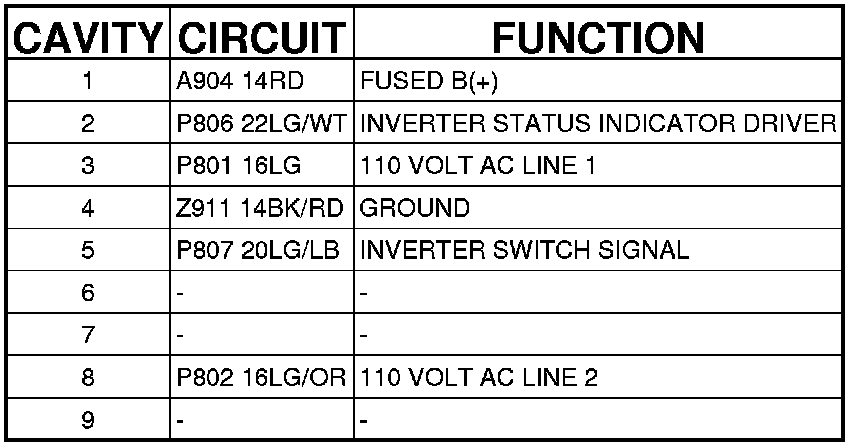

MODULE-INVERTER (EXCEPT EXPORT) - (BODY) 9 WAY
