A. Replace the Powertrain Control Module

1. Open the hood.

2. Disconnect and isolate the negative battery cable.

3. Unlock and disconnect the two electrical connectors at the PCM.

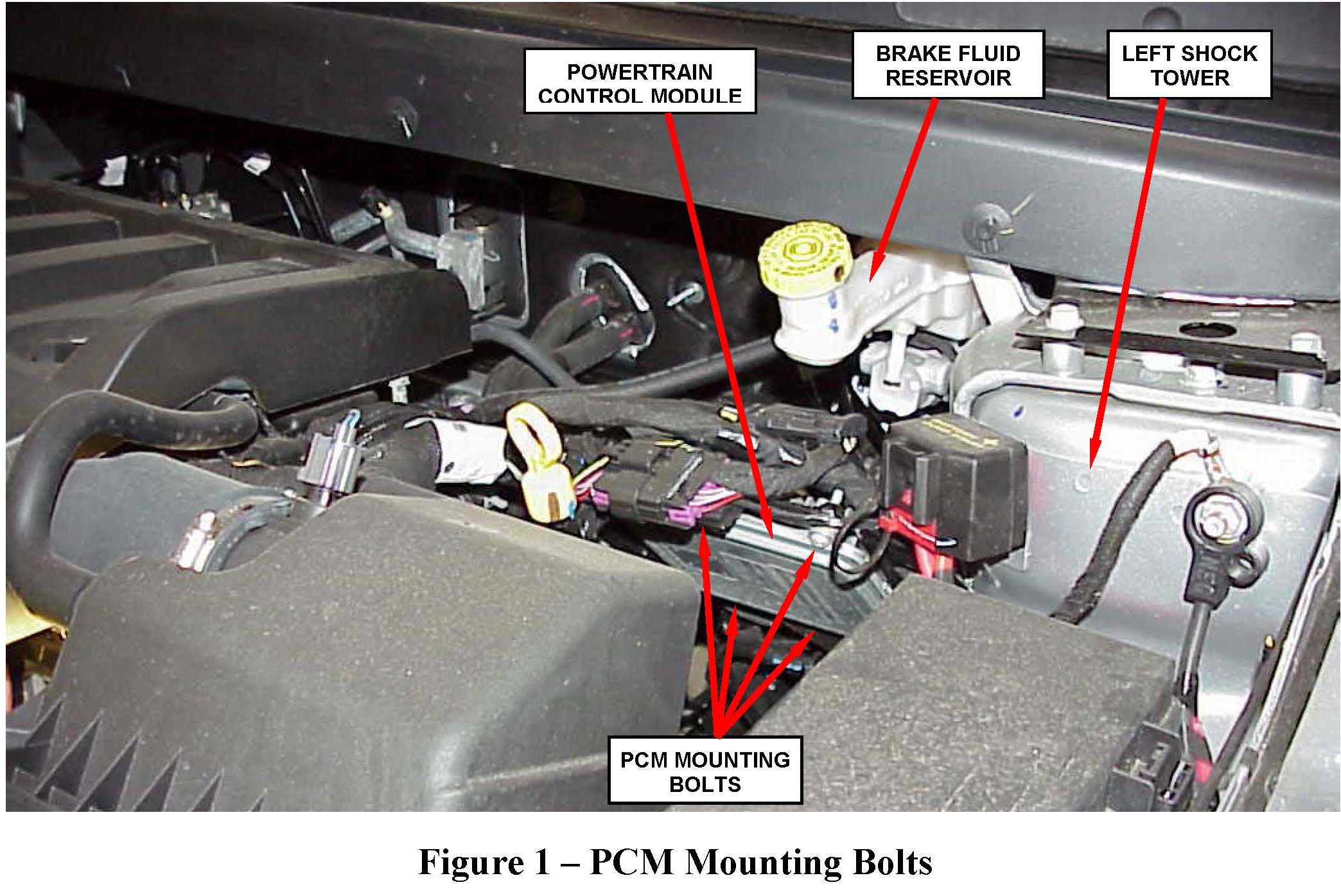

4. Remove the four bolts holding the PCM to the bracket (Figure 1)

5. Remove and discard the PCM from the vehicle.

6. Install the new PCM to the bracket with the four bolts.

7. Install and lock the two electrical connectors to the PCM.

8. Connect negative battery cable and tighten the nut to 45 in. lbs. (5 N.m).

9. Continue with Section B. Program the Powertrain Control Module. The PCM can be programmed using wiTECH, StarMOBILE or StarSCAN.
