Circuit Schematic

WARNING: This page is about a different variant/trim than selected.

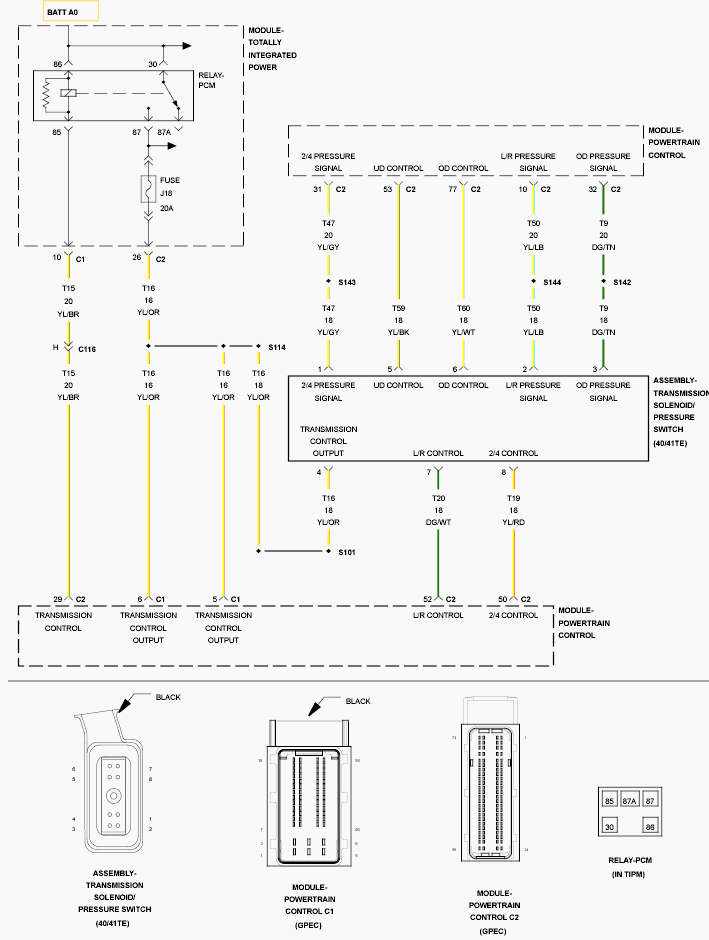

Fig 1: L/R Control Circuit Schematic
GC0129760Courtesy of CHRYSLER LLC
