Diagnostic Test

WARNING: This page is about a different variant/trim than selected.

CHECK FOR RELATED DTCS
1. With the scan tool, read DTCs.
  Are there any Transmission Control Relay or TCM Power Input DTCs present also?

  Yes
  - See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Diagnosis and Testing and perform the appropriate diagnostic procedure.
  No
  - Go to step 2
CHECK TO SEE IF THE DTC IS CURRENT
1. With the scan tool, read DTCs.
  Is the status Active or is the Starts Since Set counter set at 0 for this DTC?

  Yes
  - Go to step 3
  No
  - Go to step 7
CHECK THE PCM AND WIRING USING THE TRANSMISSION SIMULATOR
1. Turn the ignition off to the lock position.
2. Remove the Ignition Switch Feed fuse from the TIPM.
  CAUTION: Removal of the Ignition Switch Feed fuse from the TIPM will prevent the vehicle from being started in gear.

  WARNING: The Ignition Switch Feed fuse must be removed from the TIPM. Failure to do so can result in possible serious or fatal injury.
3. Install the Transmission Simulator 8333A and the Electronic Transmission Adapter kit.
4. Ignition on, engine not running.
5. With the scan tool, actuate the 2/4 Solenoid.
6. Monitor the 2/4 Solenoid LED on the Transmission Simulator.
  Did the 2/4 Solenoid LED on the Transmission Simulator blink on and off during actuation?

  Yes
  - Replace the Transmission Solenoid/Pressure Switch Assembly in accordance with the Service Information.
  - Perform the 40/41TE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 4
CHECK THE (T19) 2/4 CONTROL CIRCUIT FOR AN OPEN

Fig 1: Checking 2/4 Control Circuit For An Open
Courtesy of CHRYSLER LLC
1. Turn the ignition off to the lock position.
2. Disconnect the PCM C2 harness connector.
3. Disconnect the Transmission Simulator 8333A and the Electronic Transmission Adapter kit.
4. Measure the resistance of the (T19) 2/4 Control circuit between the PCM C2 harness connector and the Solenoid/Pressure Switch Assembly harness connector.
  Is the resistance above 5.0 Ohms?

  Yes
  - Repair the (T19) 2/4 Control circuit for an open.
  - Perform the 40/41TE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 5

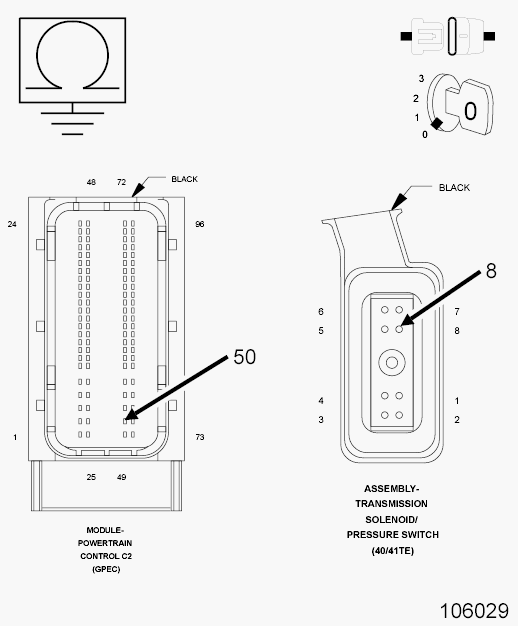

CHECK THE (T19) 2/4 CONTROL CIRCUIT FOR A SHORT TO GROUND

Fig 2: Checking 2/4 Control Circuit For A Short To Ground
Courtesy of CHRYSLER LLC
1. Measure the resistance between ground and the (T19) 2/4 Control circuit.
  Is the resistance below 5.0 Ohms?

  Yes
  - Repair the (T19) 2/4 Control circuit for a short to ground.
  - Perform the 40/41TE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 6

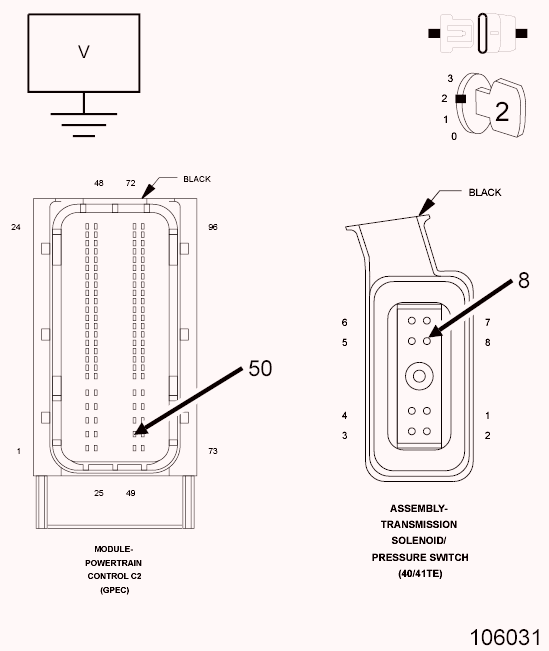

CHECK THE (T19) 2/4 CONTROL CIRCUIT FOR A SHORT TO VOLTAGE

Fig 3: Checking 2/4 Control Circuit For A Short To Voltage
Courtesy of CHRYSLER LLC
1. Ignition on, engine not running.
2. With the scan tool in the TIPM, actuate the Transmission.
3. Measure the voltage of the (T19) 2/4 Control circuit.
  Is the voltage above 0.5 of a volt?

  Yes
  - Repair the (T19) 2/4 Control circuit for a short to voltage.
  - Perform the 40/41TE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Using the schematics as a guide, check the Powertrain Control Module (PCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. Check for Service Information Tune-ups or Service Bulletins for any possible causes that may apply. If no problems are found, replace and program the PCM in accordance with the Service Information. With the scan tool, perform Quick Learn.
  - Perform the 40/41TE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
CHECK THE WIRING AND CONNECTORS
1. The conditions necessary to set the DTC are not present at this time.
2. Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.
3. Wiggle the wires while checking for shorted and open circuits.
4. With the scan tool, check the Event Data to help identify the conditions in which the DTC was set.
5. Check for Service Information Tune-ups or Service Bulletins for any possible causes that may apply.
  Were there any problems found?

  Yes
  - Repair as necessary.
  - Perform the 40/41TE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Test Complete.
