Circuit Schematic

WARNING: This page is about a different variant/trim than selected.

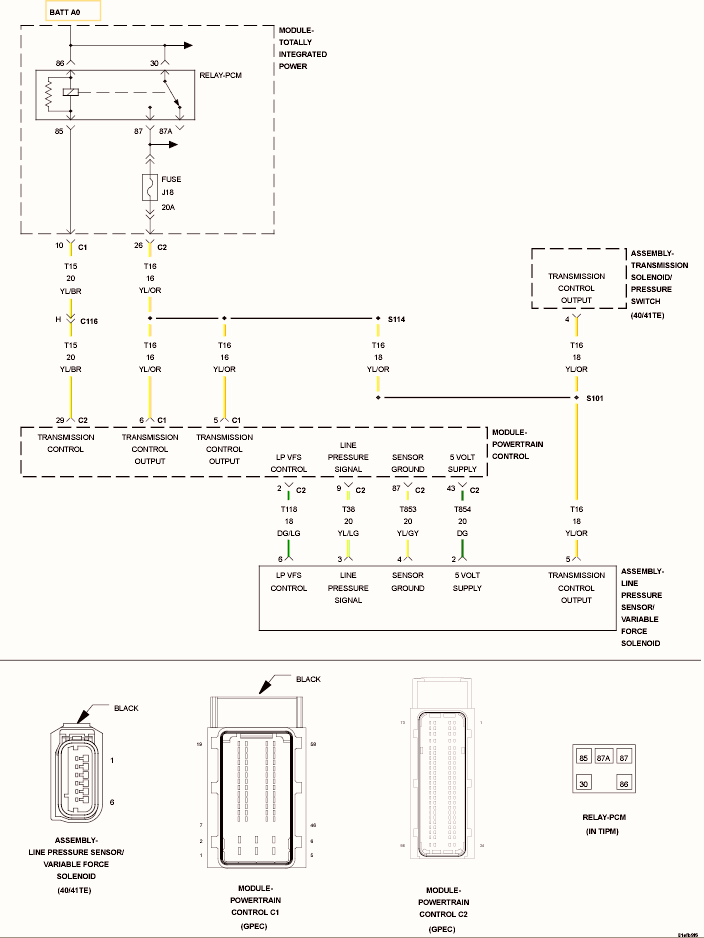

Fig 1: 5-Volt Supply & Line Pressure Variable Force Solenoid Control Circuit Schematic
GC0129761Courtesy of CHRYSLER LLC
