Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

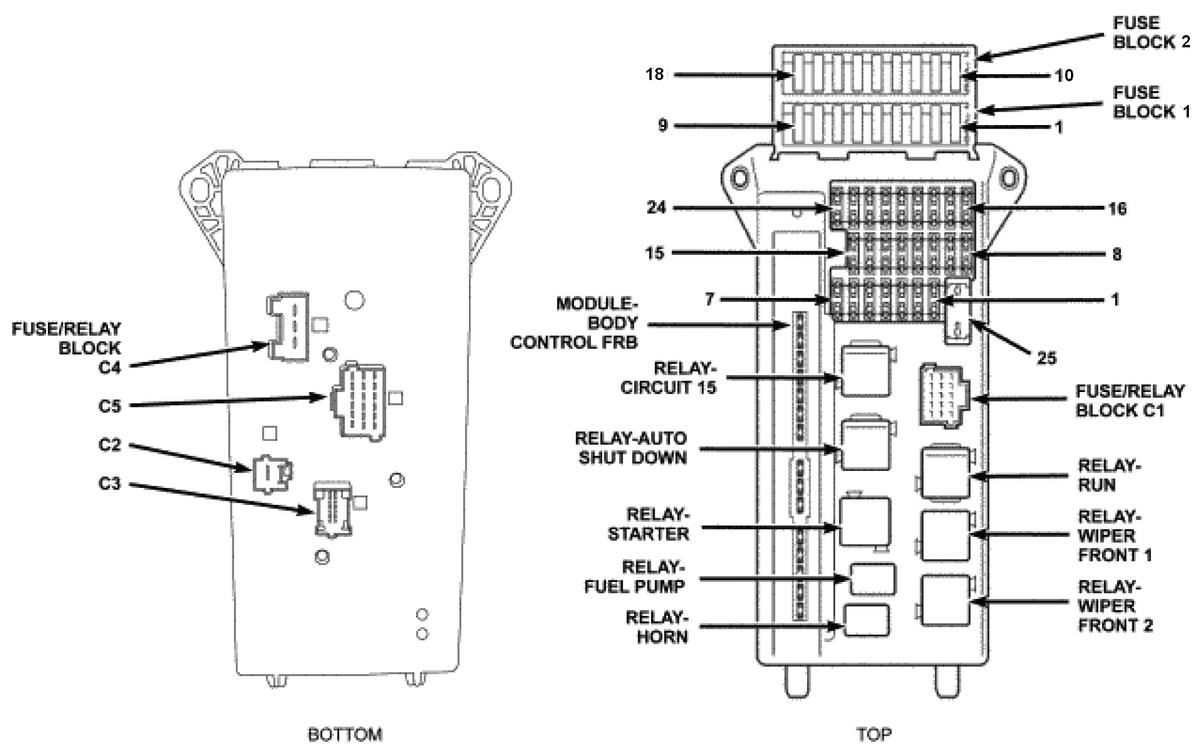

Fuse Block 1 Top of fuse/relay box. See Figure.
Fuse Block 2 Top of fuse/relay box. See Figure.
Fuse/Relay Block Left kick panel.
