90C7-Left Side Impact Sensor 2 Performance: Notes

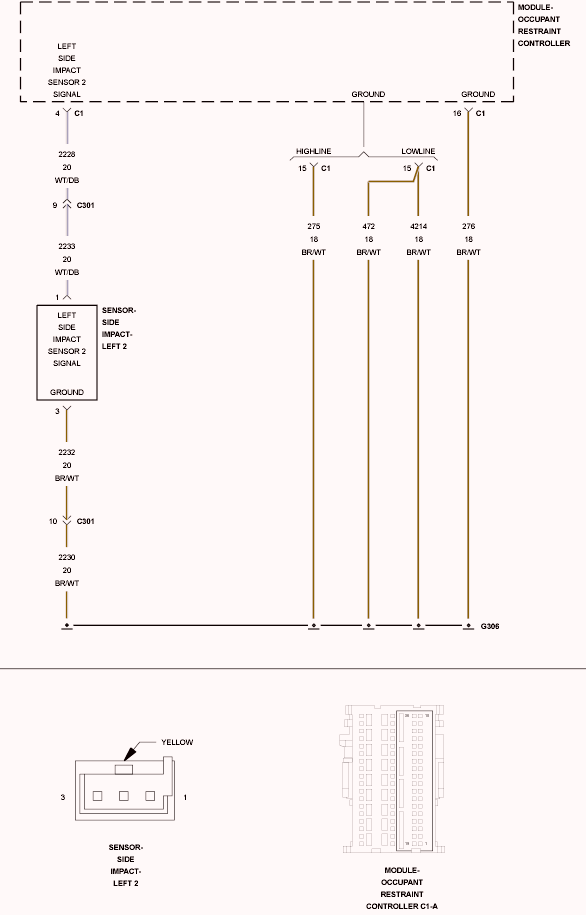

GC0134590Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
