90D6-Right Side Impact Sensor 2 Signal Error: Notes

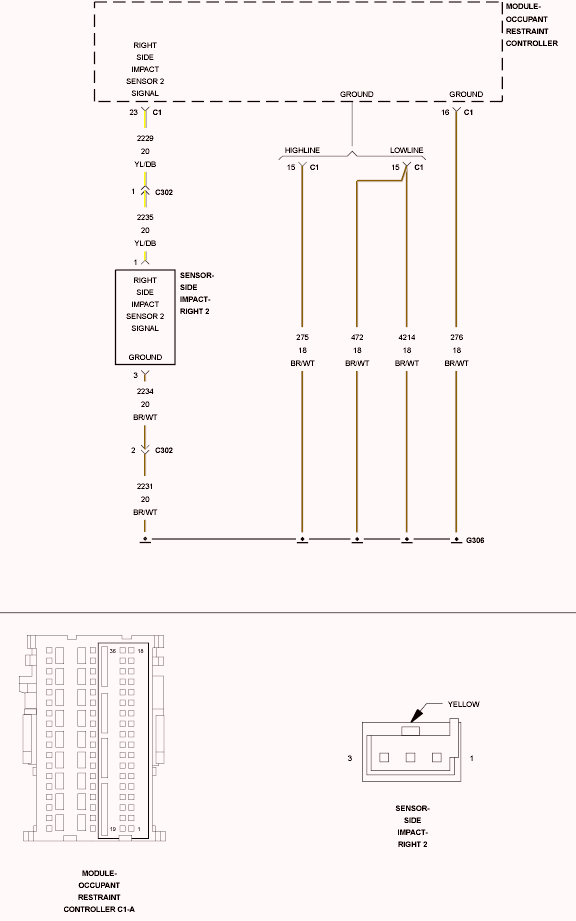

GC0134597Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
