Engine Coolant Temperature Sensor - Installation

5.7L

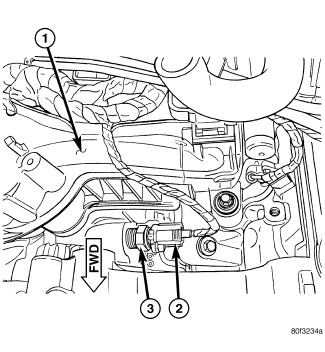

1. Apply thread sealant to ECT sensor threads.
2. Install the ECT sensor (3) to the engine.
3. Tighten the ECT sensor to 11 Nm (97.3 in. lbs.).
4. Connect the electrical connector (2).
5. Fill the cooling system Service and Repair.
