Section 59 ((Front Control Module (FCM) - Electrical Diagnostics))
>>
DTC Troubleshooting
>>
B231F-Front/Rear Washer Motor Control Circuit Low
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic
WARNING:
This page is about a different car, the 2009 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

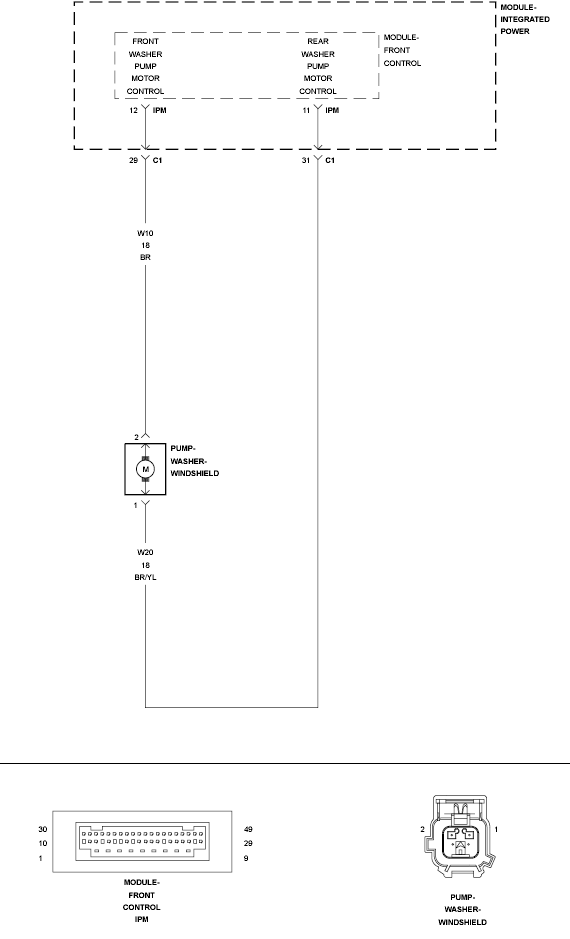

Fig 1: Washer Pump Motor Control Circuit Schematic
Courtesy of CHRYSLER LLC
