P0032-O2 Sensor 1/1 Heater Circuit High
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

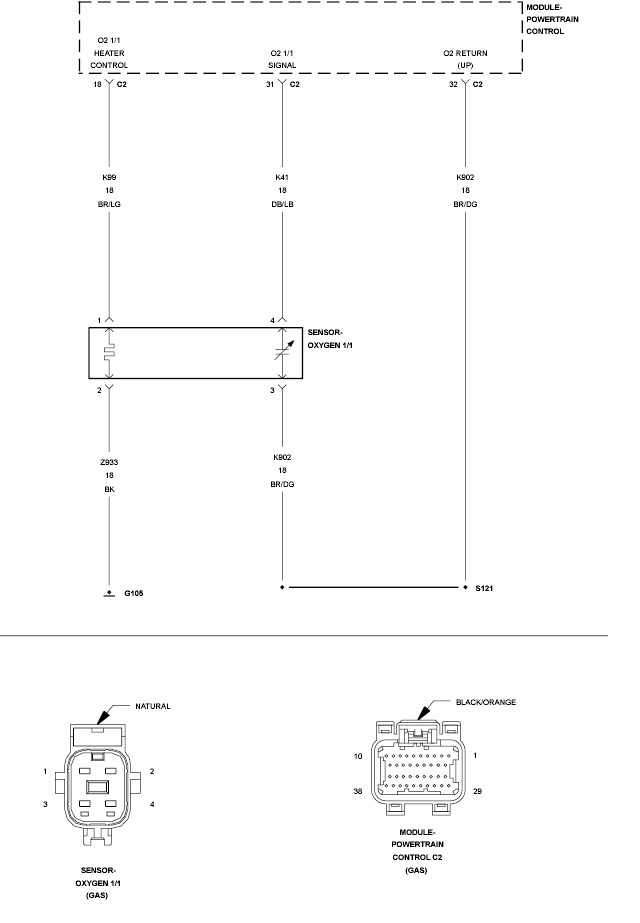

Fig 1: O2 Sensor 1/1 Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
