Section 50 (Occupant Classification Module (OCM) - Electrical Diagnostics)
>>
DTC Troubleshooting
>>
B1B84-Passenger Seat Weight Sensor 4 - Left Rear Input Circuit High
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic
WARNING:
This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

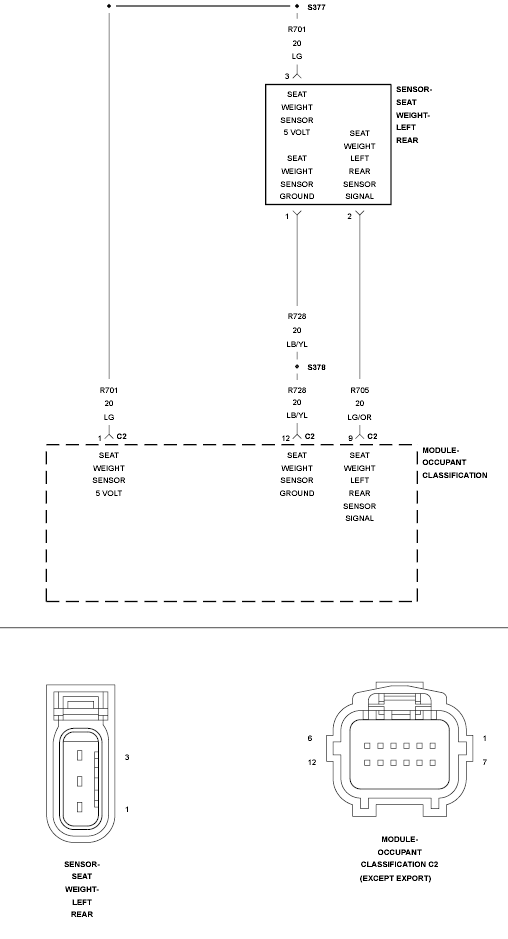

Fig 1: Left Rear Seat Weight Sensor Circuit Schematic
Courtesy of CHRYSLER LLC
