Wheel Alignment



WHEEL ALIGNMENT

NOTE: All specifications are given in degrees.

NOTE: All wheel alignments are to be set at curb height. Refer to Service and Repair

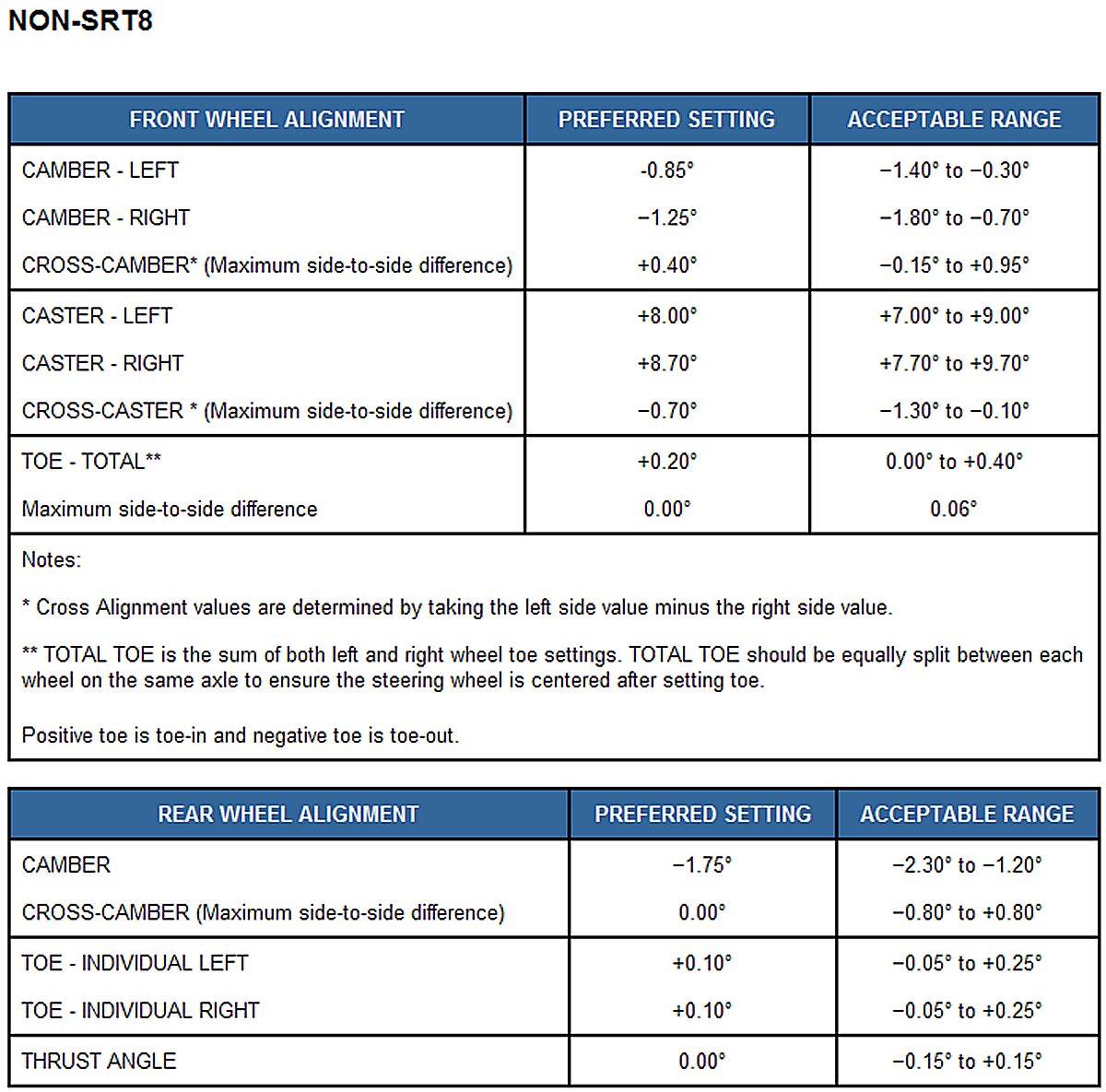

NON-SRT8

Non-SRT8:

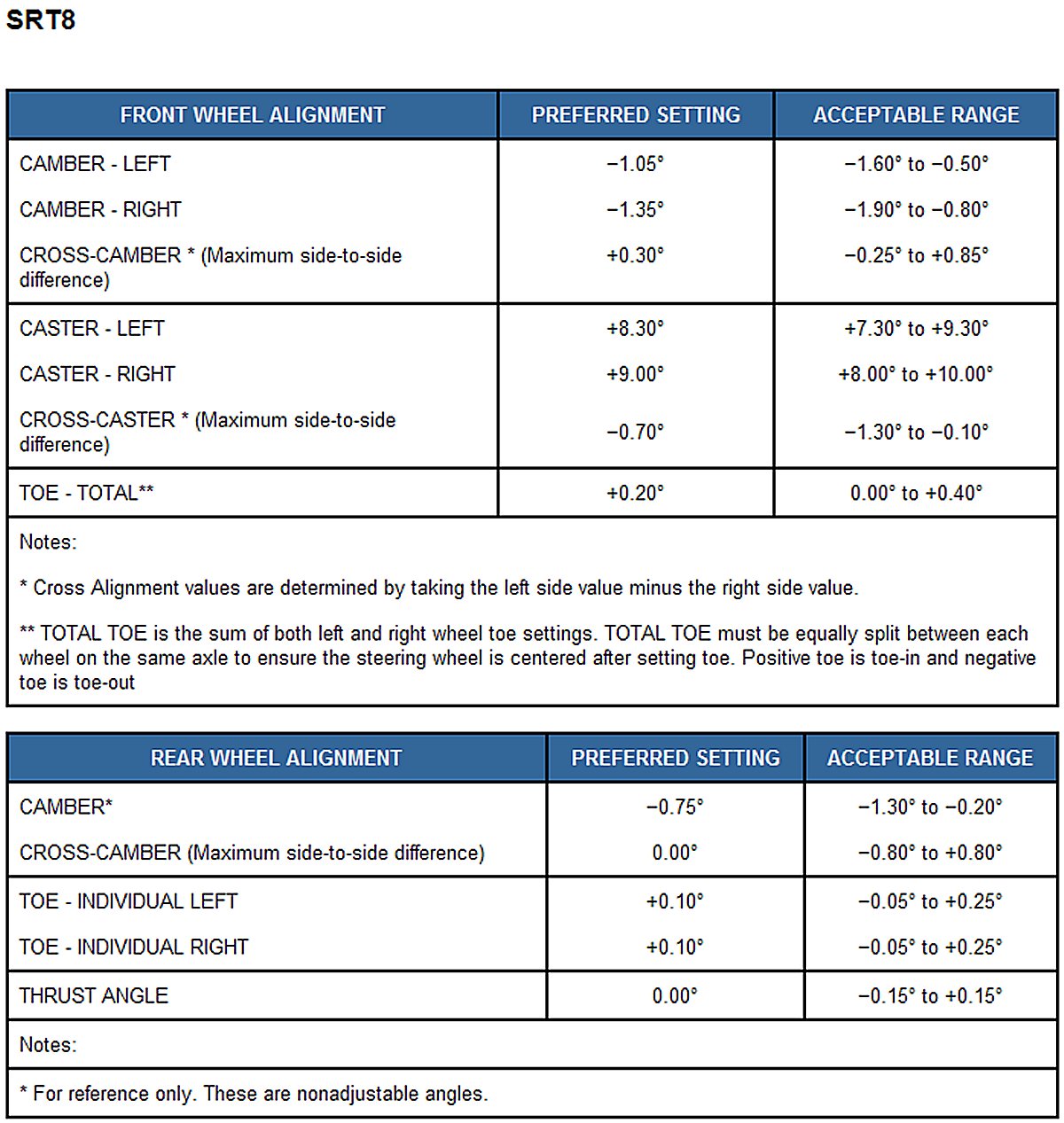

SRT8

SRT8:
