Intelligent Battery Sensor (IBS) - Installation





INSTALLATION

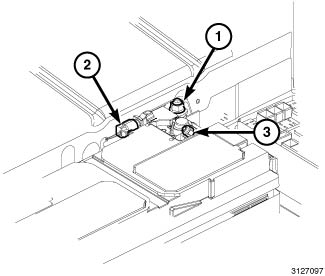

1. Install the Intelligent Battery Sensor (IBS) on the negative battery post.
2. Tighten the captive nut (3) to 8 Nm (72 In. Lbs.)
3. Connect the IBS harness (2) to the IBS.
4. Connect the negative battery cable to the IBS (1).
5. Install the components removed to access the battery Battery - Installation.
