Satellite Video Module - Installation






INSTALLATION





1. Install the satellite video module to the bracket.

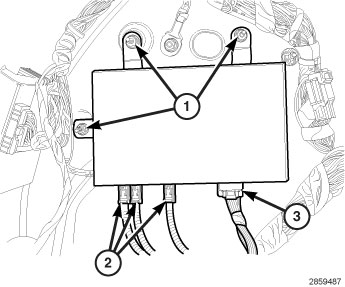

2. Install the satellite video module and mounting fasteners (1).
3. Connect the antenna (2) and electrical connector (3).
4. Install the driver's quarter trim panel. C-Pillar Trim Panel - Installation.
5. Connect the battery negative cable.
