Wheel Alignment






WHEEL ALIGNMENT

NOTE: Specifications are in degrees.

STANDARD SUSPENSION

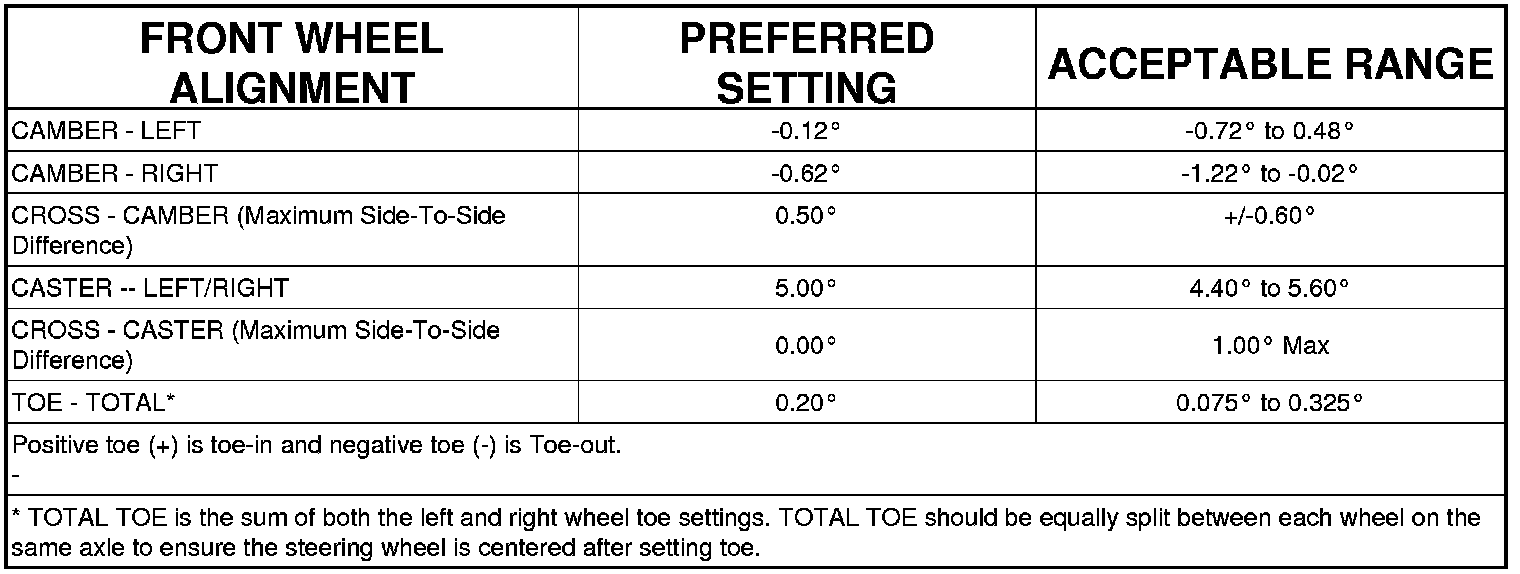

FRONT - STANDARD SUSPENSION

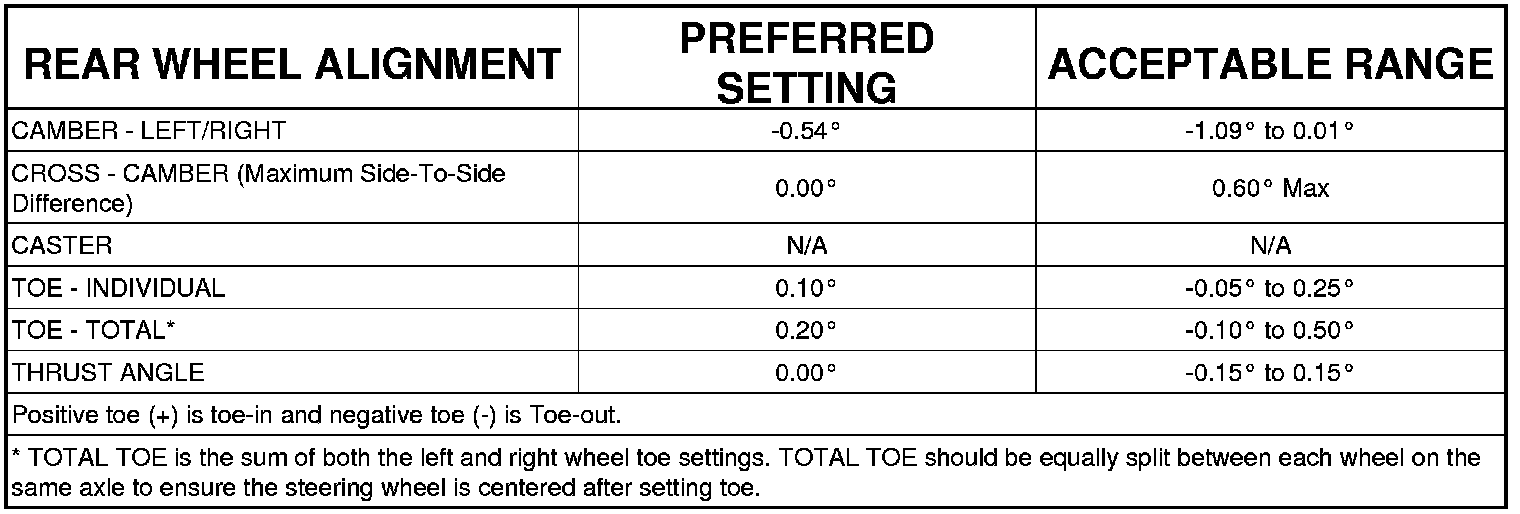

REAR - STANDARD SUSPENSION






SPORT SUSPENSION

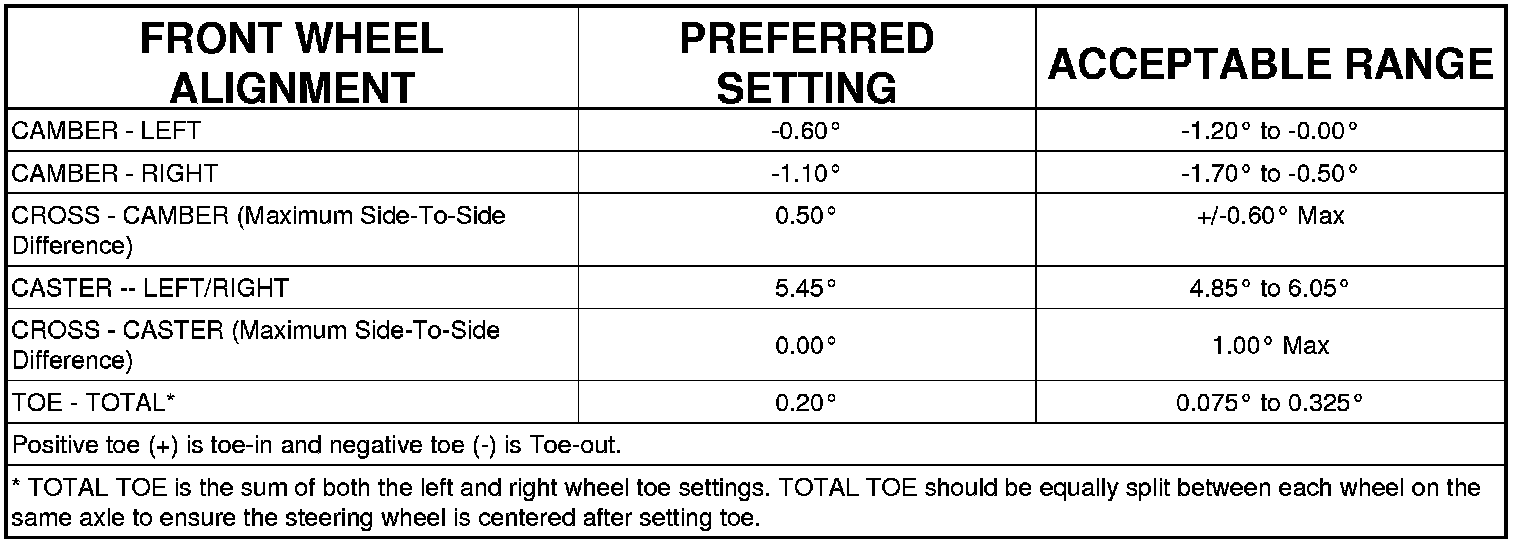

FRONT - SPORT SUSPENSION






REAR - SPORT SUSPENSION
