B185A-31-Driver Window Position Sensor - No Signal: Notes

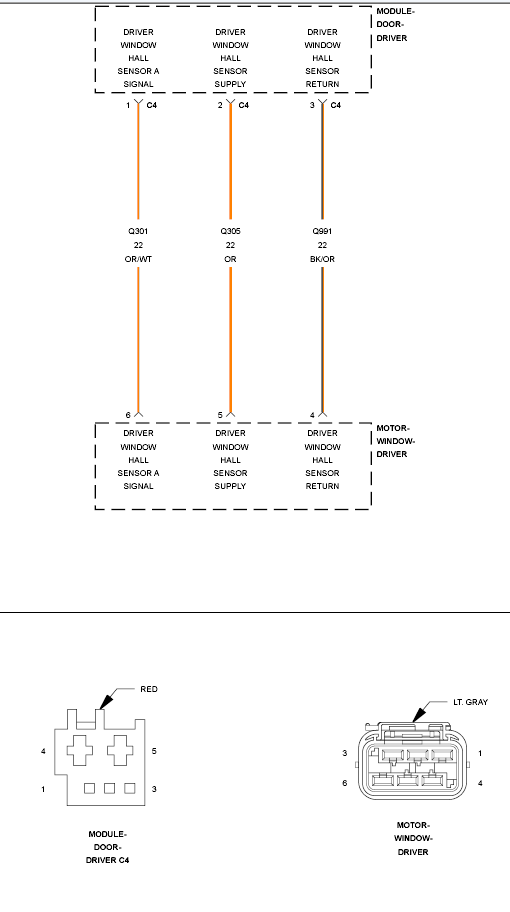

Fig 1: Driver Window Position Sensor Power Supply Wiring Diagram

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
