P0196-Engine Oil Temperature Sensor Circuit Performance: Notes

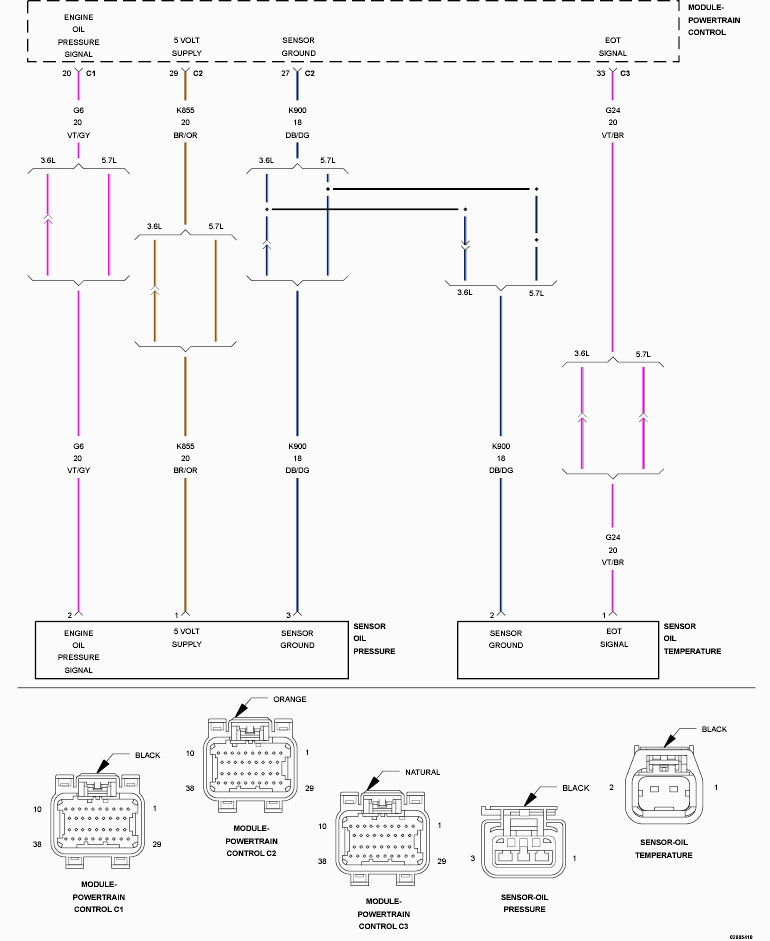

Fig 1: Engine Oil Pressure & Engine Oil Temperature Sensors Wiring Diagram

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
