WARNING: This page is about a different car, the 2011 Jeep Patriot and 2011 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

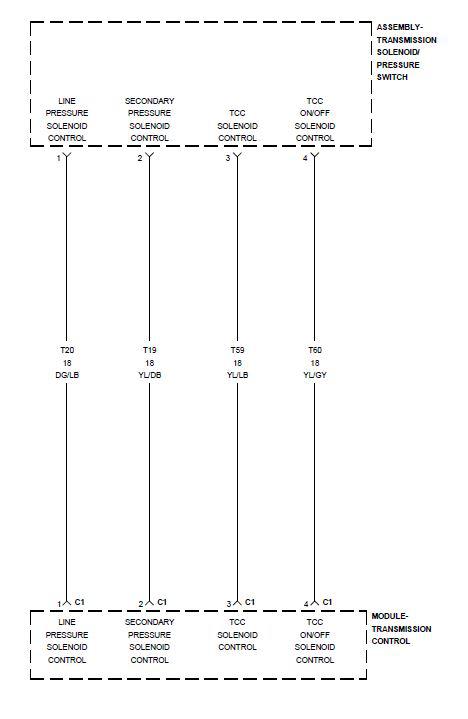

Fig 1: Pressure Control Solenoid Control Wiring Diagram
Courtesy of CHRYSLER LLC

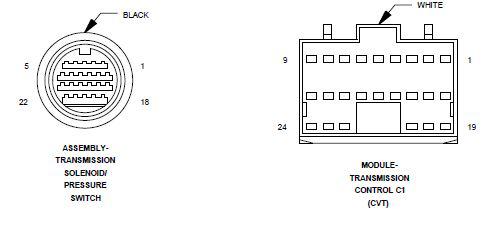

Fig 2: Pressure Control Solenoid Control Connector End View
Courtesy of CHRYSLER LLC
For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article
.
