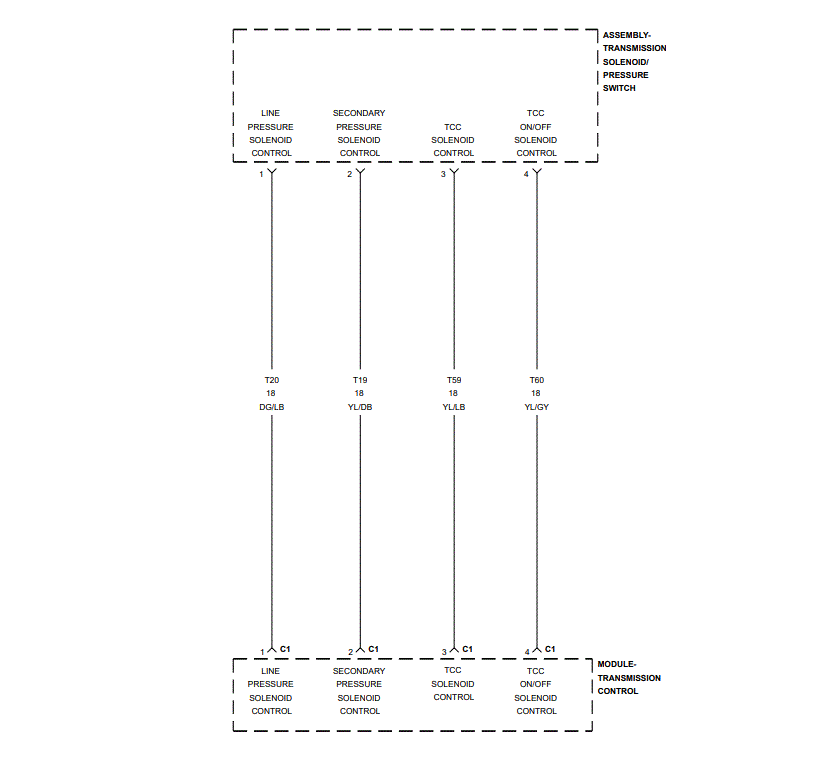

P0963-Pressure Control Solenoid A Control Circuit High: Notes
WARNING: This page is about a different car, the 2011 Jeep Patriot and 2011 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article
.
