MODULE, Final Drive Control: Installation: Installation

WARNING: This page is about a different car, the 2011 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

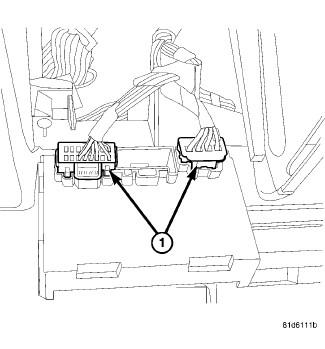

Fig 1: FDCM Electrical Connectors
GC0086447Courtesy of CHRYSLER LLC
  1. Connect the two electrical connectors (1) into the FDCM.

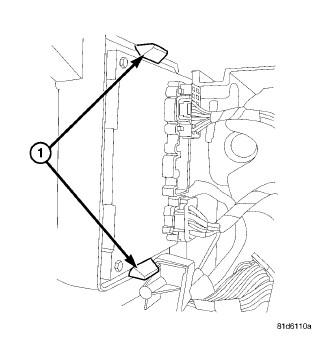

    Fig 2: Final Drive Control Module
    GC0086446Courtesy of CHRYSLER LLC
  2. Install the FDCM being certain the locking tabs (1) are secure.
  3. Raise the drivers side knee bolster.
