Diagnostic Test

WARNING: This page is about a different car, the 2011 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

TEST FOR INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, record and erase DTCs.
3. Turn the ignition off and remove the key from the ignition.
4. Close all doors and arm the VTSS and wait two minutes.
5. Disarm the VTSS turn the ignition on.
6. Turn the ignition on and with the scan tool, read DTCs.
  Does the scan tool display this DTC as active?

  Yes
  - Go To 2.
  No
  - Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
INTRUSION SENSOR TRANSMITTER

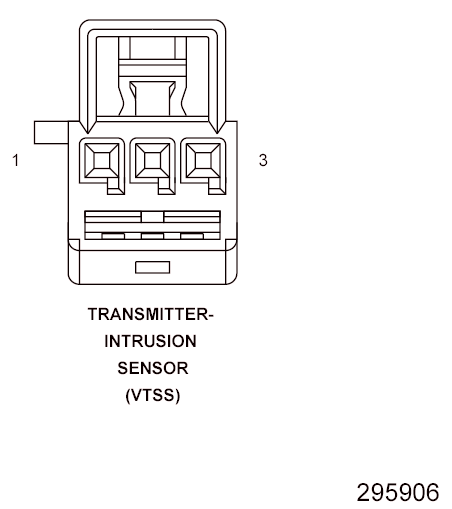

Fig 1: Checking Intrusion Sensor Transmitter
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Intrusion Sensor Transmitter connector.
3. Turn the ignition on and with the scan tool, erase DTCs.
4. Turn the ignition off and remove the key from the ignition.
5. Close all doors and arm the VTSS and wait two minutes.
6. Disarm the VTSS turn the ignition on.
7. With the scan tool, read DTCs.
  Does the scan tool display B1A41-SECURITY TRANSMITTER SENSOR CIRCUIT OPEN?

  Yes
  - Replace the Intrusion Sensor Transmitter.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Go To 3.
CHECK THE (A645) INTRUSION TRANSMITTER SENSOR SIGNAL CIRCUIT SHORT TO GROUND

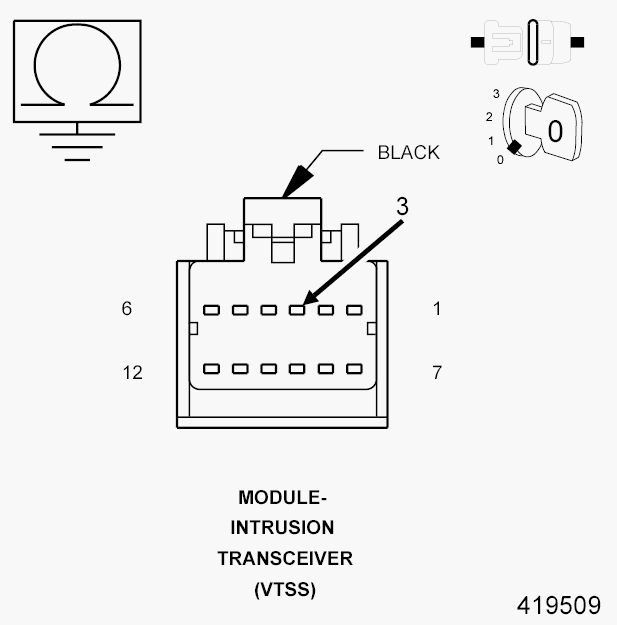

Fig 2: Checking Intrusion Transmitter Sensor Signal Circuit Short To Ground
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Intrusion Transceiver Module connector.
3. Measure the resistance between ground and the (A645) Intrusion Transmitter Sensor Signal circuit at the Intrusion Transceiver Module connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Repair the (A645) Intrusion Transmitter Sensor Signal circuit for a short to ground.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Replace the Intrusion Transceiver Module in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
