MODULE, Front Control: Removal: Removal
WARNING: This page is about a different car, the 2011 RAM Dakota. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative battery cable.
- Remove the Integrated Power Module (IPM) from the engine compartment. Refer to MODULE, Integrated Power (IPM), Removal .

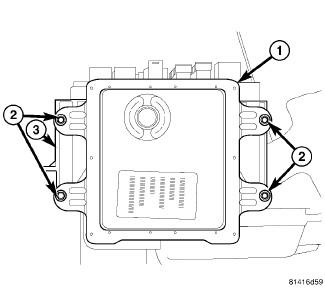

- Remove the four fasteners (2) securing the Front Control Module (FCM) (1) to the Integrated Power Module (IPM) (3).
- Separate the FCM from the PDC by pulling the two straight away from each other to disengage the electrical connector.
