PEDAL, Accelerator: Installation: Installation

WARNING: This page is about a different car, the 2011 RAM Dakota. However, it is still accessible from the selected car via links, so may be relevant.

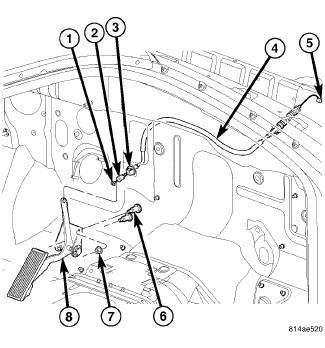

Fig 1: Identifying Accelerator Pedal Mounting Bracket Nuts, Accelerator Pedal Assembly & Throttle Control Cable

Courtesy of CHRYSLER LLC

The accelerator pedal is serviced as a complete assembly (8) including the bracket.

The accelerator cable is connected to the upper part of the accelerator pedal arm by a plastic retainer (clip) (7). This plastic retainer snaps into the top of the accelerator pedal arm.

Place accelerator pedal assembly (8) over two mounting studs (6).
Install and tighten two mounting nuts (7). Refer to SPECIFICATIONS .
Slide throttle cable (1) into opening slot in top of pedal arm.
Push plastic cable retainer (clip) (2) into accelerator pedal arm opening until it snaps into place.
Before starting engine, operate accelerator pedal to check for any binding.
