INJECTOR(S), Fuel: Installation: Installation
WARNING: This page is about a different car, the 2011 RAM Dakota. However, it is still accessible from the selected car via links, so may be relevant.

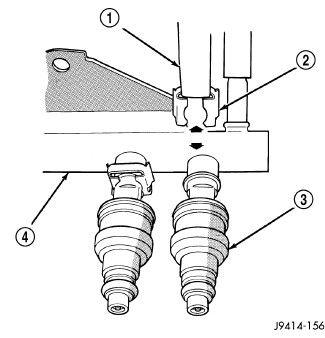

- Install fuel injector(s) (3) into fuel rail assembly (4) and install retaining clip(s) (2).
- If same injector(s) is being reinstalled, install new o-ring(s).
- Apply a small amount of clean engine oil to each injector o-ring. This will aid in installation.
- Install fuel rail. Refer to RAIL, Fuel, Installation .
- Start engine and check for fuel leaks.
