CONNECTOR, Data Link: Description: Description
WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

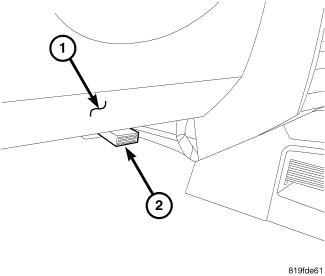

The Data Link Connector (DLC) (2) is a 16-way molded plastic connector insulator on a dedicated take out of the instrument panel wire harness. This connector is located at the lower edge of the steering column opening cover (1) on the instrument panel, inboard of the steering column. The connector insulator is retained by two screws to an integral mounting tab on the lower instrument panel reinforcement, just below the lower edge of the steering column opening cover.
