MODULE, Engine Control, Diesel: Installation: Installation

WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

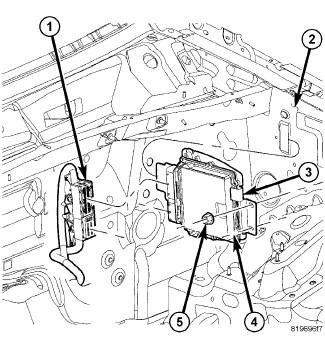

Fig 1: ENGINE CONTROL MODULE - DIESEL
GC0100785Courtesy of CHRYSLER LLC
  1. Install ECM (4) to bracket (3).
  2. Position ECM and bracket assembly to inner fender.
  3. Install ECM mounting nuts (5). Tighten nuts to 20 N.m (177 in. lbs.) torque.
  4. Check pin connectors in both the ECM and its electrical connectors for corrosion or damage. Also, the pin heights in connectors should all be same. Repair as necessary before installing connectors.
  5. Connect ECM electrical connectors (1).
  6. Connect negative battery cable.
    CAUTION: Refer to PCM/ECM REPROGRAMMING  for reprogramming procedures. If this step is not performed, a Diagnostic Trouble Code (DTC) will be set.
    CAUTION: Use the scan tool to reprogram the new ECM with the vehicles original identification number (VIN) and the vehicles original mileage. If this step is not performed, a Diagnostic Trouble Code (DTC) will be set.
