C1472-Transfer Case Clutch Control Circuit Performance: Notes
WARNING: This page is about a different car, the 2011 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

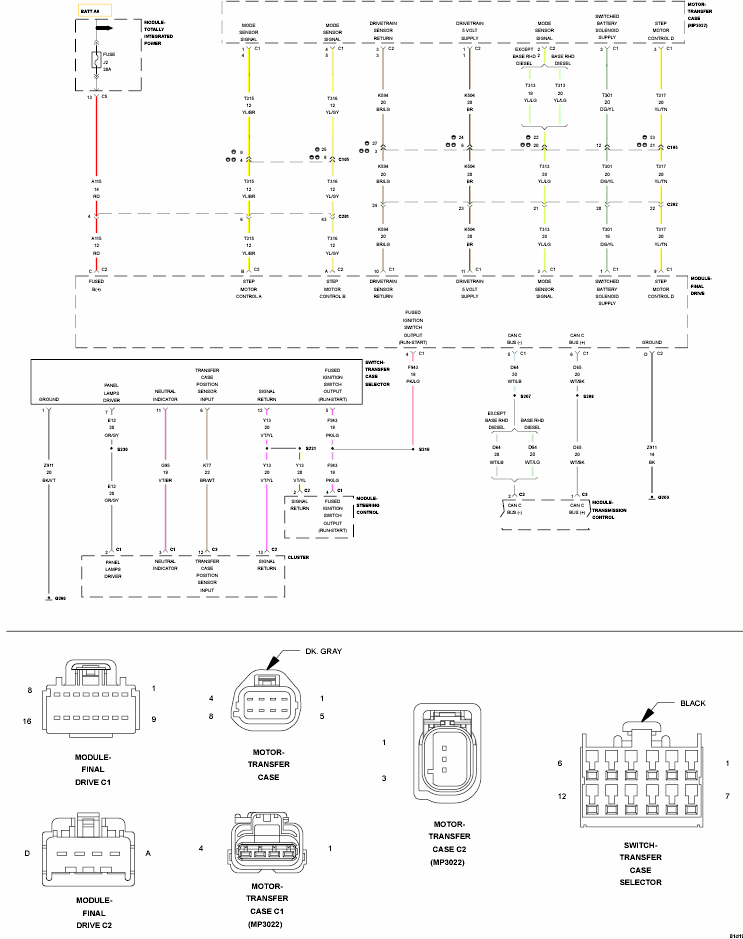

Fig 1: Transfer Case Motor Wiring Diagram
Courtesy of CHRYSLER LLC
For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article
.
