Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FOR ACTIVE DTC
    NOTE:

    With the scan tool, verify communication with the SKREEM/WCM. Diagnose any loss of communication faults.

    NOTE:

    Diagnose any SKREEM/WCM DTCs present before proceeding with test.

    1. With the scan tool, read the active DTCs.
    2. Cycle the ignition switch from off to on, leaving the ignition on for a minimum of 30 seconds.
    3. With the scan tool, read the active DTCs.

      Does the scan tool display this DTC as active?

      Yes

      • Go To  2.

      No

      • If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, or corroded terminals.
      • Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  2. VERIFY IGNITION SWITCH STATUS USING SCAN TOOL
    1. Using the scan tool, read the Ignition Switch status in the SKREEM/WCM, and the FCM.
    2. This information is located in the "Data Display" section for each module.

      Does the "Data Display" information on the scan tool match with the status of the Ignition Switch?

      Yes

      • Go To  3.

      No

      • Using the wiring diagrams and Service Information, diagnose any Ignition Switch faults.
      • Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  3. (F20) IGNITION SWITCH SENSE INPUT CIRCUIT OPEN

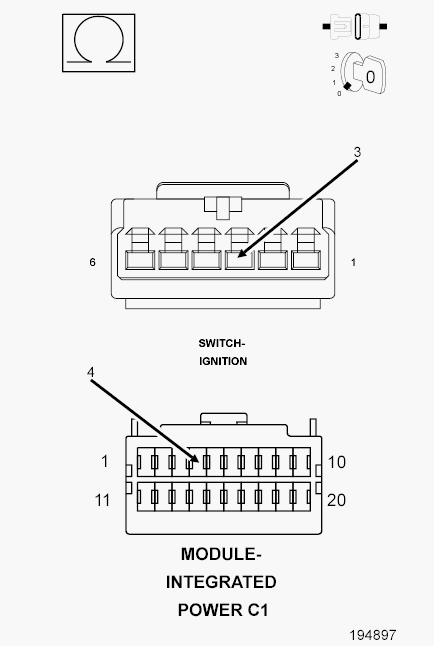

    Fig 1: Checking Ignition Switch Sense Input Circuit For Open
    GC0113553Courtesy of CHRYSLER LLC
    1. Turn the ignition off.
    2. Disconnect the IPM C1 harness connector.
    3. Disconnect the Ignition Switch harness connector.
    4. Measure the resistance of the (F20) Ignition Switch Sense Input circuit between the IPM C1 and Ignition Switch harness connectors.

      Is the resistance above 10K ohms?

      Yes

      • Repair the (F20) Ignition Switch Sense Input circuit for an open.
      • Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .

      No

      • Replace the FCM in accordance with the Service Information.
      • Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
