B2185-Ignition Unlock/Run/Start Control Circuit High: Notes

WARNING: This page is about a different car, the 2011 RAM Dakota. However, it is still accessible from the selected car via links, so may be relevant.

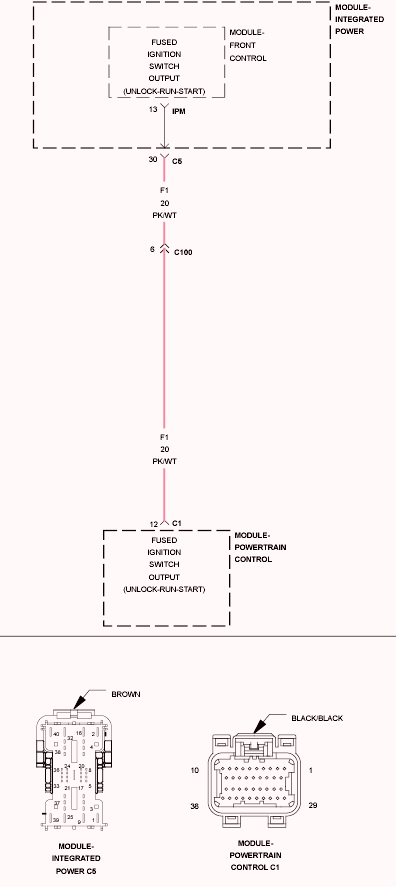

Fig 1: Ignition Unlock/Run/Start Control Wiring Diagram
GC0113563Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
