Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Dakota. However, it is still accessible from the selected car via links, so may be relevant.

CHECK THE T-CASE POSITION SENSOR VOLTAGE ABOVE 4.8 VOLTS
NOTE:
If both DTCs C140B and C1405 are present, check fuse 8 and fuse 42 in the Integrated Power Module (IPM) before continuing with diagnosis.
1. Ignition on, engine not running.
2. With the scan tool under Data Display, read the T-Case Position Sensor voltage.
  Is the voltage above 4.8 volts?

  Yes
  - Go To 2.
  No
  - Go To 8.
(T103) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE

Fig 1: Checking 5 Volt Supply Circuit Voltage
Courtesy of CHRYSLER LLC
1. Turn the ignition off to the lock position
2. Disconnect the Shift Motor/Mode Sensor connector.
3. Ignition on, engine not running.
4. Measure the voltage of the (T103) 5 Volt Supply circuit.
  Is the voltage above 5.5 volts?

  Yes
  - Repair the (T103) 5 Volt Supply circuit for a short to voltage.
  - Perform the TRANSFER CASE VERIFICATION TEST. Refer to TRANSFER CASE VERIFICATION TEST .
  No
  - Go To 3.
(D201) MODE SENSOR A CIRCUIT SHORTED TO VOLTAGE

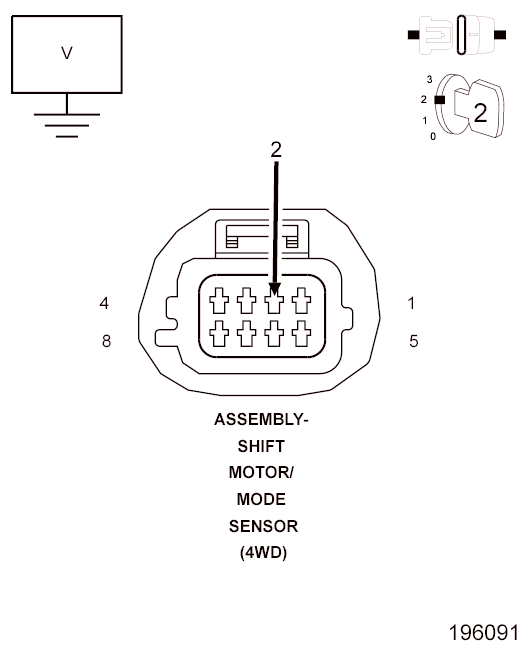

Fig 2: Checking Mode Sensor A Circuit Shorted To Voltage
Courtesy of CHRYSLER LLC
1. Measure the voltage of the (D201) Mode Sensor A circuit.
  Is the voltage above 5.5 volts?

  Yes
  - Repair the (D201) Mode Sensor A circuit for a short to voltage.
  - Perform the TRANSFER CASE VERIFICATION TEST. Refer to TRANSFER CASE VERIFICATION TEST .
  No
  - Go To 4.
SHIFT MOTOR/MODE SENSOR ASSEMBLY

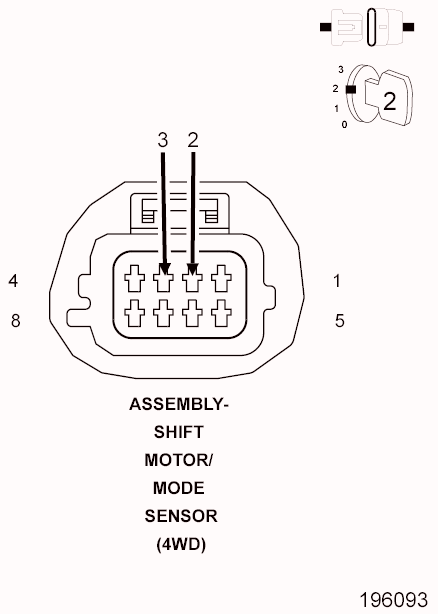

Fig 3: Checking Shift Motor/Mode Sensor Assembly
Courtesy of CHRYSLER LLC
1. Turn the ignition off to the lock position
2. Connect a jumper wire between the (G180) FCM Sensor Return circuit and the (D201) Mode Sensor A circuit in the Shift Motor/Mode Sensor harness connector.
3. Ignition on, engine not running.
4. With the scan tool under Data Display, read the T-Case Position Sensor voltage.
  NOTE:
  Remove the jumper wire before continuing.

  Is the voltage below 0.2 of a volt?

  Yes
  - Replace the Shift Motor/Mode Sensor assembly in accordance with the Service Information.
  - Perform the TRANSFER CASE VERIFICATION TEST. Refer to TRANSFER CASE VERIFICATION TEST .
  No
  - Go To 5.
(D201) MODE SENSOR A CIRCUIT OPEN

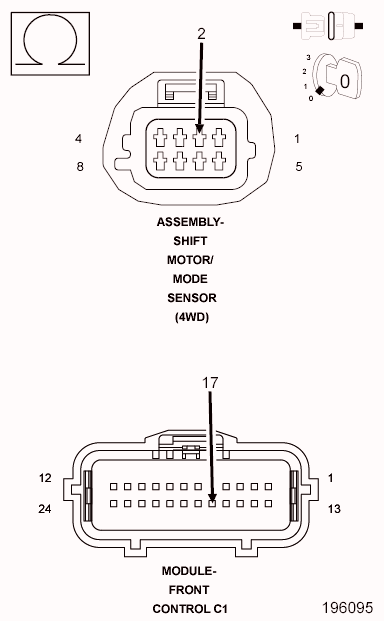

Fig 4: Checking Mode Sensor A Circuit Open
Courtesy of CHRYSLER LLC
1. Turn the ignition off to the lock position
2. Disconnect the FCM C1 harness connector.
3. Measure the resistance of the (D201) Mode Sensor A circuit between the FCM C1 harness connector and the Shift Motor/Mode Sensor harness connector.
  Is the resistance above 5.0 Ohms?

  Yes
  - Repair the (D201) Mode Sensor A circuit for an open.
  - Perform the TRANSFER CASE VERIFICATION TEST. Refer to TRANSFER CASE VERIFICATION TEST .
  No
  - Go To 6.
(G180) FCM SENSOR RETURN CIRCUIT OPEN

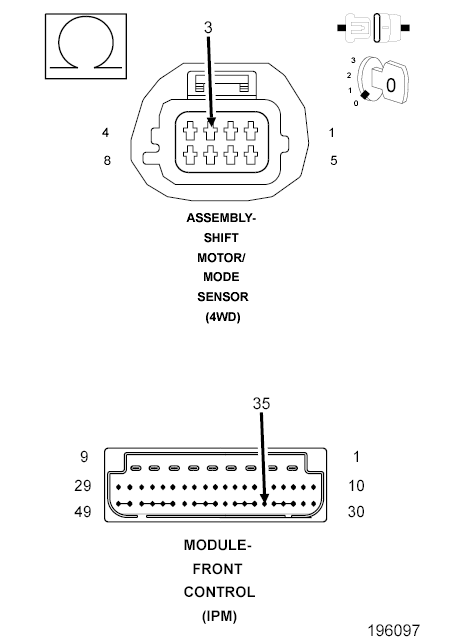

Fig 5: Checking FCM Sensor Return Circuit Open
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (G180) FCM Sensor Return circuit between the Shift Motor/Mode Sensor harness connector and the FCM IPM harness connector.
  Is the resistance above 5.0 Ohms?

  Yes
  - Go To 7.
  No
  - Replace the Front Control Module in accordance with the Service information.
  - Perform the TRANSFER CASE VERIFICATION TEST. Refer to TRANSFER CASE VERIFICATION TEST .
(G180) FCM SENSOR RETURN CIRCUIT OPEN (IPM)

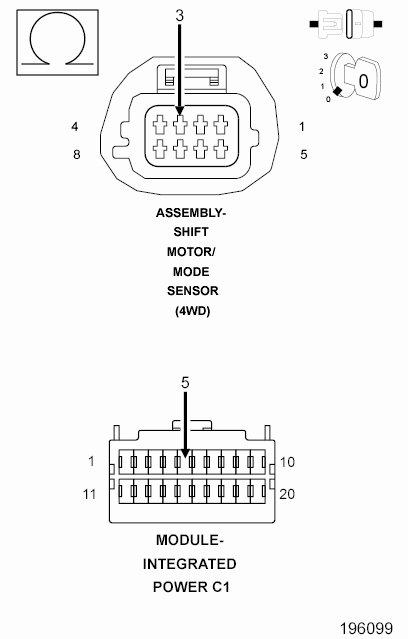

Fig 6: Checking FCM Sensor Return Circuit Open
Courtesy of CHRYSLER LLC
1. Disconnect the Integrated Power Module C1 harness connector.
2. Measure the resistance of the (G180) FCM Sensor Return circuit between the Shift Motor/Mode Sensor harness connector and the Integrated Power Module C1 harness connector.
  Is the resistance above 5.0 Ohms?

  Yes
  - Repair the (G180) FCM Sensor Return circuit for an open.
  - Perform the TRANSFER CASE VERIFICATION TEST. Refer to TRANSFER CASE VERIFICATION TEST .
  No
  - Replace the Integrated Power Module in accordance with the Service information.
  - Perform the TRANSFER CASE VERIFICATION TEST. Refer to TRANSFER CASE VERIFICATION TEST .
INTERMITTENT WIRING AND CONNECTORS
1. The conditions necessary to set this DTC are not present at this time.
2. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
3. While monitoring the scan tool data relative to this circuit, wiggle test the wiring and connectors.
4. Look for the data to change or for the DTC to reset during the wiggle test.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform the TRANSFER CASE VERIFICATION TEST. Refer to TRANSFER CASE VERIFICATION TEST .
  No
  - Test complete.
